Optolong yellow dichroic mirror beam splitter

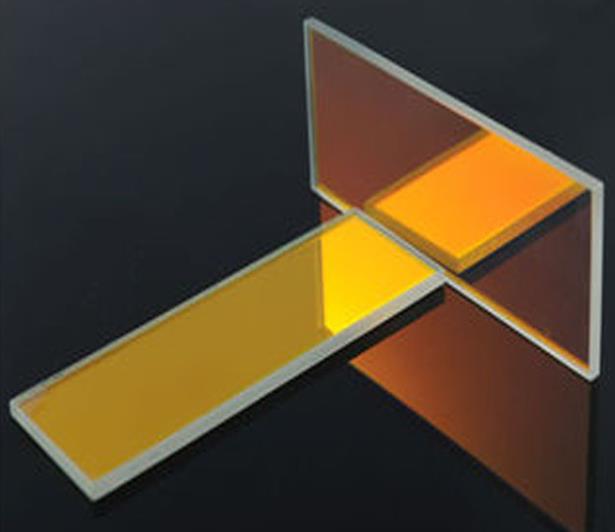

Optolong yellow dichroic mirror beam splitter optical filter for ophthalmic instrument

Dichroic Mirror/Filters introduce:

Dichroic Filters are coated with thin-film dielectric coatings that transmit wavelengths within a specified transmission band and reflect all other wavelengths.

By reflecting rejected wavelengths instead of absorbing them, dichroic filters can be used with more intense light sources than absorptive filters.

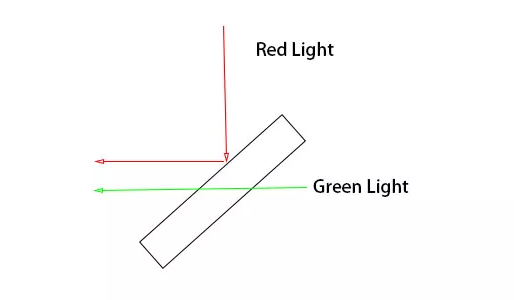

Dichroic Filters are generally used at a 45° angle of incidence to reflect rejected light at 90° to the transmitted light. Dichroic Filters are used in applications such as fluorescence microscopy and flow cytometry to selectively transmit light towards detectors.





Customize
Substrates:
B270, BK7, JGS
CWL
405-545m
CWL accuracy
above± 2
AOI
45deg
Size(mm)
15*15*1.1mm or OEM
Thickness(mm)
1.1mm +/-0.10mm
Surface/Coating Quality
60/40,80/50

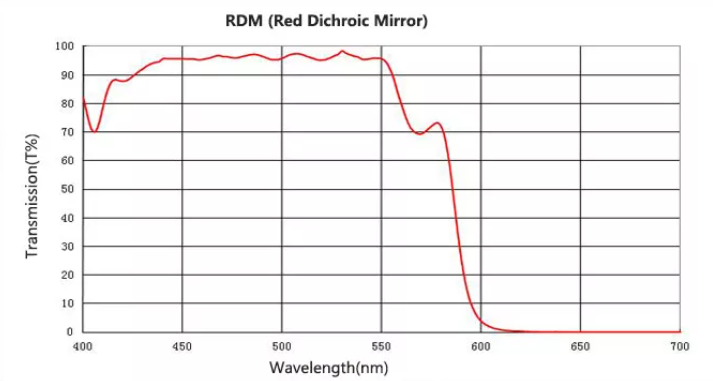

Transmittance1
≥95%@405-545
Transmittance2
≤0.5%@630-650

We can manufacture lenses in any optical material required. Please contact us with your specific requirements.
