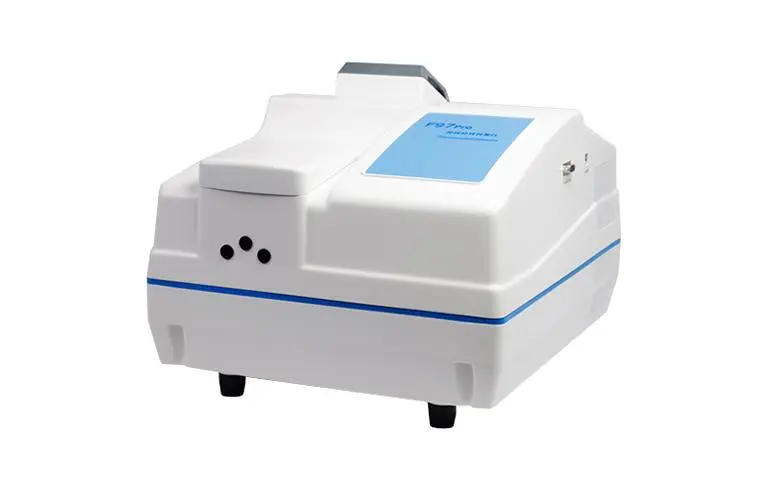

F97 series fluorescence spectrophotometers
F97 series fluorescence spectrophotometers (F97, F97Pro, F97XP) are high-end fluorescence spectrophotometer products carefully developed by Huiqi Optics.The product adopts dual monochromator, proportional dual optical path design with excitation light monitoring system, 150W Hamamatsu high-quality xenon lamp, adopts 1200 lines/mm concave grating and large aperture aspheric mirror spectroscopic system, small size, compact structure, and has the ability to detect It has the characteristics of high sensitivity, fast scanning speed, wide spectral measurement range, large detection dynamic range and fast three-dimensional scanning. Excellent mechanical structure and digital signal processing ensure that the instrument can complete 3D full-spectrum scanning within 1 minute during high-speed 3D scanning.
F97 series fluorescence spectrophotometers (F97, F97Pro, F97XP) easily meet the qualitative and quantitative analysis needs in the fields of material research, drug analysis, biochemical and clinical testing, water quality analysis and control, food safety testing and other fields. It is your best choice for multi-functional, high-precision, high-efficiency fluorescence analysis!
Fluorescence spectrophotometer Main Features
High sensitivity: based on high efficiency optical design and weak signal detection technology, the water Raman peak signal to noise ratio can be greater than 200 (P – P) to the leading domestic and international advanced level.
High scanning speed: the high speed digital signal processing unit provides the world’s fastest scanning speed at 48000nm/min. Only 1 second to get classic fluorescence spectra, 1 minute to get high quality of three-dimensional fluorescence spectra.
Wide Spectral measurement range: using a double monochromator design, excitation and emission wavelength range covering 200 nm to 900 nm, meet the needs of most fluorescence analysis.
Excitation light path monitoring system: instrument is equipped with excitation light dual beam ratio monitoring system to ensure the fluorescence signal high and stable.
High quality assurance: using Hamamatsu’s high quality Xenon light source and photoelectric multiplier tube detectors and instruments to provide sufficient light intensity signal and the detection sensitivity.
Built-in optical gate: Built-in optical gate, designed for unstable sample.
Specification of F97 Series Fluorescence Spectrophotometer |
|
| Excitation Source | 150W xenon lamp（Hamamatsu） |
| Excitation Wavelength | 200nm~900nm |
| Emission Wavelength | 200nm~900nm |
| Excitation Slit | F97XP/F97Pro：2nm、5nm、10nm、20nm |
| F97：10nm | |
| Emission Slit | F97XP/F97Pro：2nm、5nm、10nm、20nm |
| F97：10nm | |
| Wavelength Accuracy | F97XP：±0.4nm |
| F97/ProF97：±1.0nm | |
| Wavelength Repeatability | F97XP：≤0.2nm |
| F97/F97Pro：≤0.5nm | |
| Signal-to-Noise Ratio | F97XP： S/N≥200（10nm Slit）（P-P） |
| S/N≥1200（10nm Slit）（RMS） | |
| S/N≥12000（10nm Slit）（RMSBG） | |
| F97/F97Pro： S/N≥150（10nm Slit）（P-P） | |
| S/N≥1000（10nm Slit）（RMS） | |
| S/N≥10000（10nm Slit）（RMSBG） | |
| Limit | F97XP：≤5×10-11 g/ml（Quinine Sulfate Solution） |
| F97/F97Pro：≤1×10-10 g/ml（Quinine Sulfate Solution） | |
| Linearity | γ≥0.995 |
| Peak Repeatability | ≤1.5% |
| Stability(10min) | Zero Drift：±0.3 |
| Value Limit：±1.5% | |
| Wavelength Scan Speed | Multi-speed Level, Maximum at 48000nm/min |
| Photometric Quantity Range | 0.00-10000.00 |
| Data Transportation | USB2.0 |
| Power | 200W |
| Power Source | AC 220V/50Hz； 110V/60Hz |
| Instrument Dimension | 380×445×310（mm） |
| Weight | Net Weight：12kg Gross Weight：14kg |
Standard
| Standard configuration items | quantity |
| Fluorescence spectrophotometer host | one tower |
| Instruction Manual | one book |
| Product Qualification Certificate | one serving |
| Application References | one serving |
| Software U Disk | one |
| 10mm Stone cuvettes | 2 only |
| power cable | one root |
| USB cable data line | one root |
| fuse（2A / 5A） | 2 each |
| Packing List | one serving |
| dust cover | one piece |
Options
| Measurement accessories | Function |
| Single-hole sample cell holder (already standard) | Routine Liquid Fluorescence Measurements |
| Multipurpose fluorescence sample holder | Various measurement accessory bases |
| Frequency doubling filter | Eliminate frequency doubling interference peaks in fluorescence measurements |
| 200μLMicrocentrifuge Tube Measurement Accessories | Centrifuge tube fluorescence measurement function |
| Capillary Micro Sample Measurement Accessories | Provides capillary micro sample measurement function |
| Single Well Cell Adapter | Combined with the multi-purpose fluorescence sample holder to form the functions of conventional liquid fluorescence measurement and fluorescence reflection measurement |
| Membrane fluorescence sample measuring rack | Combined with the multi-purpose fluorescent sample holder to form conventional film sample fluorescence measurement and fluorescence reflection and transmission measurement functions |
| Powder Fluorescence Sample Measuring Rack | Combined with the multi-purpose fluorescence sample holder to form a conventional powder sample fluorescence measurement function |
| Sheathed cell holder | Combined with the multi-purpose fluorescence sample holder to form a sheathed fluorescence sample cell with fluorescence measurement function |
| Micro Quartz Four-way Cuvette | Provides fluorescence measurement function for trace samples |
F97 fluorescence spectrophotometer Optional Parts
| Accessories | Functions |
| Single sample rack | Conventional liquid fluorescence sample |
| Multi purpose fluorescent sample rack holder | Base holder for other racks |
| Octave Filters | Remove the interference of frequency doubling |
| Membrane sample rack | For membrane sample |
| Powder sample rack | For powder samples |
| Auto Polarization filter | Adjust the polarization light |
| Jacket sample rack |
|
Other types of spectrophotometer |
||
 |
 |
 |
|

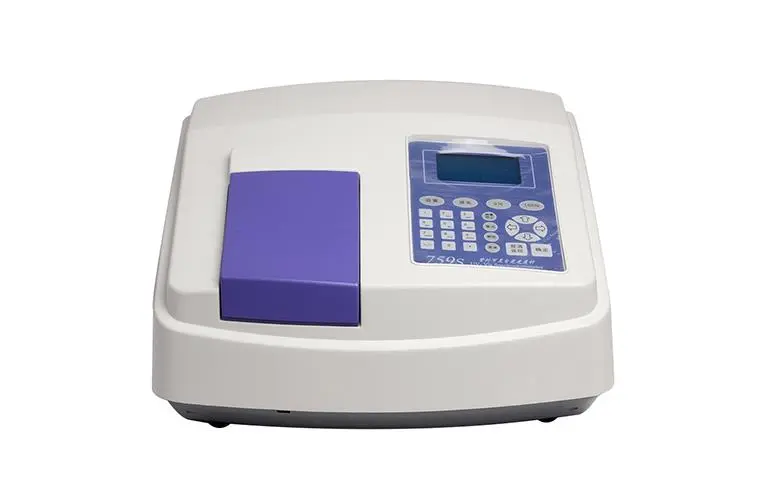

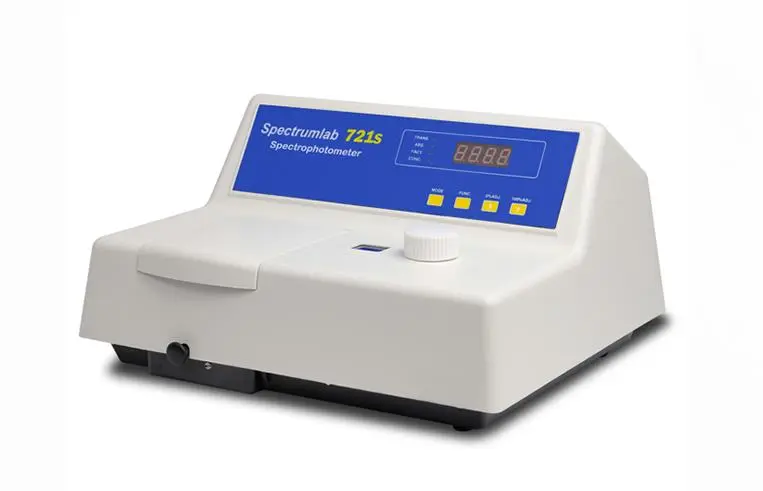

VIS SPECTROPHOTOMETER |
