Roof Prism is an optical element used to alter the path of light, commonly found in optical systems, especially binoculars. Its name comes from its distinctive shape resembling the ridge of a house. Let me briefly introduce the design and applications of a Roof Prism for you. Composition and Features of Roof Prism: A Roof Prism is primarily com

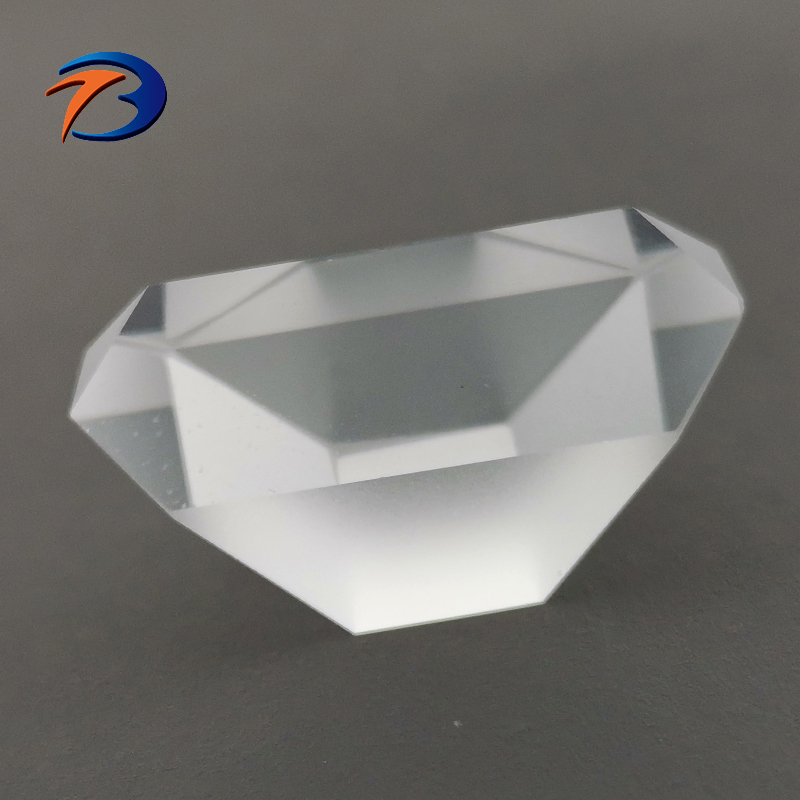

Roof Prism is an optical element used to alter the path of light, commonly found in optical systems, especially binoculars. Its name comes from its distinctive shape resembling the ridge of a house. Let me briefly introduce the design and applications of a Roof Prism for you.




Composition and Features of Roof Prism:


A Roof Prism is primarily composed of two right-angle prisms, with their sloping surfaces meeting to form a 90-degree "ridge" edge.


The two mutually perpendicular reflecting surfaces are referred to as the roof faces, and a prism with these roof faces is known as a Roof Prism.


Roof Prisms are compact in size, allowing the objective and eyepiece lenses to be aligned on a single axis, making them ideal for extremely compact binoculars.



Function and Applications of Roof Prism:


Roof Prisms are employed in applications requiring a 90-degree deviation of images or laser beams.


As light passes through the prism, the image is reflected from right to left and from top to bottom.


They are suitable for use in telescopes and any optical instrument that needs to invert images from the objective, fold them to the right, and bend them at a 90-degree angle to maintain the correct visual orientation.



Advantages and Disadvantages:


Roof Prisms have two main drawbacks compared to regular right-angle prisms (such as Porro prisms):

  • They exhibit higher light loss, resulting in dimmer imaging.
  • They demand high assembly precision, making them challenging to manufacture and relatively expensive.

Nonetheless, well-crafted Roof Prisms can match but not surpass the performance of standard right-angle prisms in terms of performance.



In conclusion, Roof Prisms offer unique applications in optical systems, especially in binoculars, effectively altering the path of light to align the objective and eyepiece lenses on a single axis, enabling a more compact design.
