Research and Applications of Optical Cylindrical Lenses

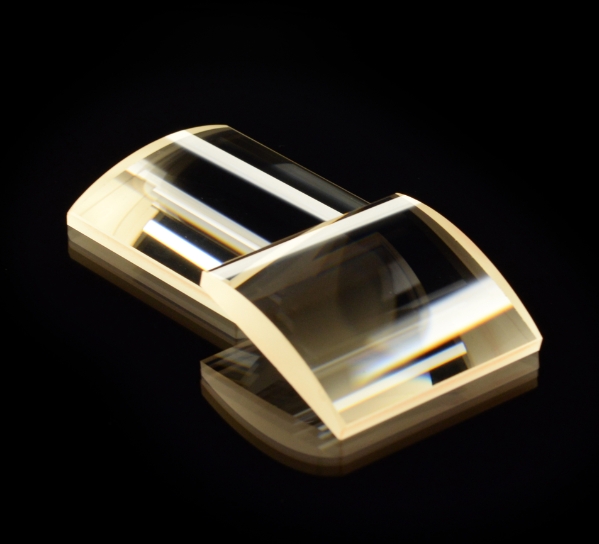

Optical cylindrical lenses have a wide range of applications in modern optical systems, especially in strong laser systems and synchrotron radiation beams. Optical cylindrical lenses are lenses with a cylindrical shape that can focus light onto a line. They play a crucial role in optical systems, particularly in applications that require linear focusing.


Optical cylindrical lenses have a wide range of applications in modern optical systems, especially in strong laser systems and synchrotron radiation beams.


  1. Optical cylindrical lenses are lenses with a cylindrical shape that can focus light onto a line. They play a crucial role in optical systems, particularly in applications that require linear focusing.




  1. Basic Principles of Optical Cylindrical Lenses
    The working principle of optical cylindrical lenses is based on the laws of refraction of light. Cylindrical lenses can be concave or convex, each used in different optical systems. Concave cylindrical lenses are used to focus parallel light into a line, while convex cylindrical lenses are used to expand light from a point source into a line.


  2. Manufacturing Techniques
    The manufacturing of optical cylindrical lenses involves high-precision processing techniques. Traditional optical surface shaping techniques combined with computer numerical control (CNC) machining can achieve the high precision required for cylindrical lens manufacturing. Some main manufacturing techniques include:


Grinding and Polishing

Grinding and polishing are key steps in manufacturing high-precision optical cylindrical lenses. By optimizing the parameters of the grinding and polishing processes, the best balance of surface roughness and material removal rate can be achieved, producing high-precision cylindrical lenses that meet optical system requirements.


Ion Beam Machining
Ion beam machining is a high-precision surface processing technique suitable for manufacturing complex-shaped optical components. By controlling the energy and direction of the ion beam, precise processing of the surface of optical cylindrical lenses can be achieved.


Magnetorheological Finishing
Magnetorheological finishing utilizes the rheological properties of magnetorheological fluid under the influence of a magnetic field to finely polish optical cylindrical lenses. This technology is characterized by high precision and efficiency, making it suitable for processing large optical components.


  1. Application Areas
  2. Optical cylindrical lenses have wide-ranging applications in various fields:

Strong Laser Systems
In strong laser systems, optical cylindrical lenses are used for linear focusing and shaping of laser beams. By using high-precision cylindrical lenses, efficient transmission and focusing of laser beams can be achieved, enhancing the overall performance of the system.


Synchrotron Radiation Beams
Synchrotron radiation sources are high-brightness light sources widely used in scientific research and industrial inspection. Optical cylindrical lenses in synchrotron radiation beams are used for beam collimation and focusing, improving beam quality and stability.


Solar Concentration
Cylindrical Fresnel lenses are common solar concentrator devices that focus sunlight onto a line, enhancing optical efficiency. This technology is important for solar thermal power generation and photovoltaic power generation.


Medical Imaging
In medical imaging systems, optical cylindrical lenses are used for focusing and imaging X-rays and ultrasound. By using high-precision cylindrical lenses, the resolution and image quality of imaging systems can be improved.


  1. Future Developments


  2. With the continuous advancement of optical technology, the manufacturing precision and application range of optical cylindrical lenses will further expand. Future research will focus on improving the precision and efficiency of manufacturing processes and exploring new application areas. For example, the development of nanoscale machining techniques and adaptive optics technology will bring new opportunities for the manufacturing and application of optical cylindrical lenses.


  3. Conclusion


  4. Optical cylindrical lenses play a significant role in modern optical systems. By continuously optimizing manufacturing techniques and expanding application areas, optical cylindrical lenses will bring more possibilities for scientific research and industrial applications.
