Stable and equipped with multiple control functions. The whole machine combines fiber seed source with solid-state hybrid amplification technology and frequency doubling technology, and has undergone reliability tests such as high temperature aging, high and low temperature impact, and vibration testing. The typical output wavelength is 355nm, which can achieve a maximum power output of 40W and a maximum single pulse energy of 40u. The pulse width is controllable, and it has excellent performance in P1 film, LCP carbonization free cutting, FPC window opening and other fields.
Product Features
Integrated machine design, compact and small model
Fiber Solid State Hybrid Technology/Frequency Doubling Technology
Frequency 800kHz-2MHz optional
Excellent applicability and lifespan in industrial environments
Application area
Material micro nano processing
OLED module cutting
FPC material cutting/punching
Fiber Bragg Grating Engraving and grooving
material cutting/marking
Medical device manufacturing
Specification
|
Parameters/Type |
Unit |
Ablator-PUV-15 |
Ablator-PUV-30 |
Ablator-PUV-40 |
|
Working Mode |
|
Pulse |
Pulse |
Pulse |
|
Center Wavelength |
nm |
355 | 355 | 355 |
|
Max Optical Average Power |
W | >15 |
>30 |
>40 |
| PSO/PODfunction |
|
support |
support |
support |
|
Pulse Width |
ps |
<15ps |
<15ps |
<15ps |
|
Burst Mode |
|
1-10 |
1-10 |
1-10 |
|
Pulse Repetition Rate |
kHz |
500-2000 |
800-2000 |
800-2000 |
|
Polarization |
|
Linear |
Linear |
Linear |
|
Extinction Ratio |
dB |
>20 |
>20 |
>20 |
|
Max Pulse Energy |
uJ |
>30 |
>30 |
>40 |
|
Beam Quality M2 |
|
≤1.2 |
≤1.3 |
≤1.3 |
|
Beam Diameter |
mm |
2.0±0.3 |
2.0±0.3 |
2.0±0.3 |
|
Output Power Tunability |
% |
0-100 |
0-100 |
0-100 |
|
Power stability，RMS@8h |
% |
<1 |
<1 |
<1 |
|
Pulse stability，RMS |
% |
<1 |
<1 |
<1 |
|
Power consumption |
- |
water-cooling |
water-cooling |
water-cooling |
|
Cooling method |
W |
<800 |
<1000 |
<1000 |
|
Electrical Supply Voltage |
VAC |
220 |
220 |
220 |
|
Operating Temperature |
℃ |
20-30 |
20-30 |
20-30 |
|
Storage Temperature |
℃ |
0-60 |
0-60 |
0-60 |
|

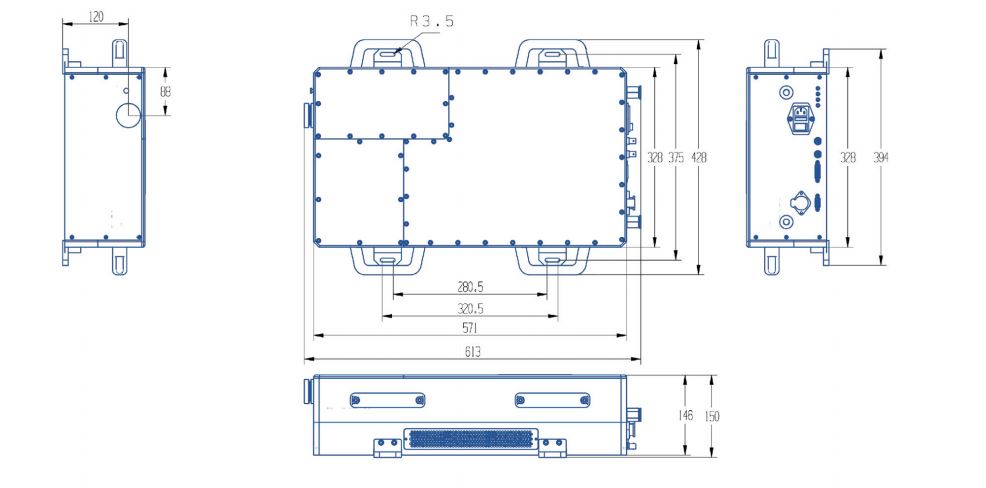

Dimensions（L*W*H） |
mm |
613x394x150 |
613x394x150 |
613x394x150 |
|
Weight |
kg |
<50 |
<50 |
<50 |
