Stable and equipped with multiple control functions. The whole machine combines fiber seed source with solid-state hybrid amplification and frequency doubling technology, and has undergone reliability tests such as high temperature aging, high and low temperature impact, and vibration testing. The typical output wavelength is 532nm, which can achieve a maximum power output of 60W and a maximum single pulse energy of 60u. The pulse width is controllable, and it has excellent performance in fields such as PI film, LCP carbonization free cutting, FPC window opening, etc.
Product Features
Body machine design, compact and small model
Fiber Solid State Hybrid Technology/Frequency Doubling Technology
Frequency 800kHz-2MHz optional
Pulse width controllable, with a maximum power output of 60W
Excellent applicability and lifespan in industrial environments
Application area
Material micro nano processing
OLED module cutting
FPC material cutting/punching
Processing of composite film materials
ITO drilling spaces/lines
material cutting/marking
Glass, sapphire cutting/drilling
Specification
|
Parameters/Type |
Unit |
PGL-15 |
PGL-30 |
PGL-60 |
|
Working Mode |
|
Pulse |
Pulse |
Pulse |
|
Center Wavelength |
nm |
532 | 532 | 532 |
|
Max Optical Average Power |
W | >15 |
>30 |
>60 |
| PSO/PODfunction |
|
support |
support |
support |
|
Pulse Width |
ps |
<15ps |
<15ps |
<15ps |
|
Burst Mode |
|
1-10 |
1-10 |
1-10 |
|
Pulse Repetition Rate |
kHz |
500-2000 |
800-2000 |
800-2000 |
|
Polarization |
|
Linear |
Linear |
Linear |
|
Extinction Ratio |
dB |
>20 |
>20 |
>20 |
|
Max Pulse Energy |
uJ |
>30 |
>30 |
>60 |
|
Beam Quality M2 |
|
≤1.2 |
≤1.3 |
≤1.3 |
|
Beam Diameter |
mm |
2.0±0.3 |
2.0±0.3 |
2.0±0.3 |
|
Output Power Tunability |
% |
0-100 |
0-100 |
0-100 |
|
Power stability，RMS@8h |
% |
<1 |
<1 |
<1 |
|
Pulse stability，RMS |
% |
<1 |
<1 |
<1 |
|
Power consumption |
- |
water-cooling |
water-cooling |
water-cooling |
|
Cooling method |
W |
<800 |
<800 |
<1000 |
|
Electrical Supply Voltage |
VAC |
220 |
220 |
220 |
|
Operating Temperature |
℃ |
20-30 |
20-30 |
20-30 |
|
Storage Temperature |
℃ |
0-60 |
0-60 |
0-60 |
|

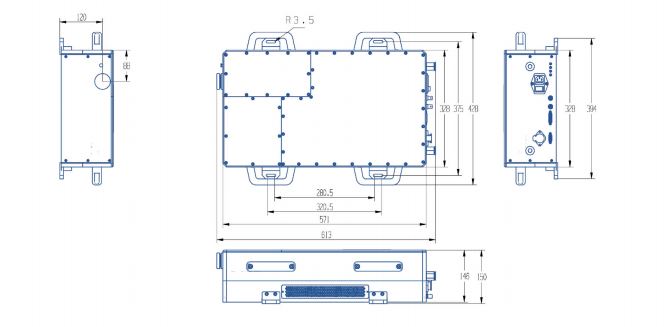

Dimensions（L*W*H） |
mm |
613x394x150 |
613x394x150 |
613x394x150 |
|
Weight |
kg |
<50 |
<50 |
<75 |
