The whole machine combines fiber seed source and solid hybrid amplification technology, and has undergone reliability tests such as high-temperature aging, high and low temperature impact, and vibration testing. The typical output wavelength is 1064nm, which can achieve a maximum power output of 150W, with a maximum single pulse energy of 300u and a pulse train energy of up to 2m. The pulse width is controllable, and it has excellent performance in the fields of hard and brittle material cutting, drilling, glass, sapphire cutting, wafers, etc.
Product Features
Body machine design, compact and small model
Fiber optic solid-state hybrid technology, excellent beam quality
Burst pulse train mode, pulse controllable technology
PSO (Position Synchronization Output Trigger) and POD (Pulse Optional)
Up to 300uJ single pulse energy, 2mJ or more pulse train energy
Excellent applicability and lifespan in industrial environments
Pulse width controllable, minimum pulse width<10ps
Application area
Material micro nano processing
OLED module cutting
Sapphire and ceramic cover cutting
Processing of composite film materials
wafer processing
Lithium battery separator cutting
Glass and metal welding
Specification
|
Parameters/Type |
Unit |
PNIR-30 |
PNIR-50 |
PNIR-70 |
PNIR-150 |
|
Working Mode |
|
Pulse |
Pulse |
Pulse |
Pulse |
|
Center Wavelength |
nm |
1064 | 1064 | 1064 |
1064 |
|
Max Optical Average Power |
W | >30 |
>50 |
>70 |
>150 |
| PSO/PODfunction |
|
support |
support |
support |
support |
|
Pulse Width |
ps |
<15ps |
<15ps |
<15ps |
<15ps |
|
Burst Mode |
|
1-10 |
1-10 |
1-10 |
1-10 |
|
Pulse Repetition Rate |
kHz |
25-3000 |
25-3000 |
25-3000 |
25-3000 |
|
Polarization |
|
Linear |
Linear |
Linear |
|
|
Extinction Ratio |
dB |
>20 |
>20 |
>20 |
|
|
Max Pulse Energy |
uJ |
>300 |
>1000 |
>2000 |
>150 |
|
Beam Quality M2 |
|
≤1.3 |
≤1.5 |
≤1.5 |
≤1.5 |
|
Beam Diameter |
mm |
2.0±0.3 |
2.0±0.3 |
2.0±0.3 |
2.0±0.3 |
|
Output Power Tunability |
% |
0-100 |
0-100 |
0-100 |
0-100 |
|
Power stability，RMS@8h |
% |
<1 |
<1 |
<1 |
<1 |
|
Pulse stability，RMS |
% |
<1 |
<1 |
<1 |
<1 |
|
Power consumption |
- |
water-cooling |
water-cooling |
water-cooling |
water-cooling |
|
Cooling method |
W |
<800 |
<1000 |
<1500 |
<2000 |
|
Electrical Supply Voltage |
VAC |
220 |
220 |
220 |
220 |
|
Operating Temperature |
℃ |
20-30 |
20-30 |
20-30 |
20-30 |
|
Storage Temperature |
℃ |
0-60 |
0-60 |
0-60 |
0-60 |
|

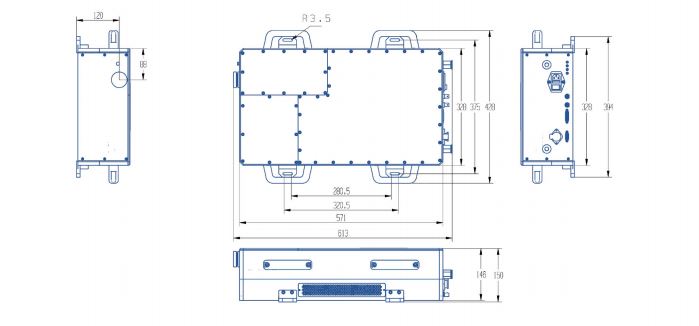

Dimensions（L*W*H） |
mm |
613x394x150 |
613x394x150 |
743x411x150 |
743x411x150 |
|
Weight |
kg |
<50 |
<75 |
<75 | <100 |
