The ultraviolet nanosecond laser has the characteristics of short pulse width and high peak power, and combines pump laser technology with acousto-optic modulation technology, efficient intracavity frequency conversion technology, and high-precision temperature control technology. The entire series of products is designed according to the requirements of industrial grade lasers, and has undergone temperature cycling and shock vibration testing to ensure the power stability and long-term reliability of the products.

The typical output wavelength is 355nm, with a repetition rate of 50-150kHz and a pulse width of less than 18ns. It is suitable for various fields such as non-metallic material marking, glass marking, PCB board cutting, FPC board cutting, etc.

Product Features
end pumped, long lifespan
Basic mode spot output
Wide range of work repetition frequency
Excellent industrial stability
Application area
PCB and FPC board cutting non-metallic material marking
Cutting of hard and brittle materials
Solar panel cutting
Glass, ceramic, plastic cutting

Specification

Parameters/Type	Unit	NUV-NH2-10	NUV-NH2-15	NUV-NH2-20
Working Mode		Pulse	Pulse	Pulse
Center Wavelength	nm	355	355	355
Pulse Repetition Rate	kHz	50-150	50-150	60-200
Pulse Width		<18ns@50kHz	<18ns@50kHz	<15ns@60kHz
Average Output Power		>10W@50kHz	>15W@50kHz	>20W@60kHz
Polarization Mode		horizontally polarized	horizontally polarized	horizontally polarized
Power stability，RMS@8h		< 3%@RMS	< 3%@RMS	< 3%@RMS
Beam Quality M2		<1.2	<1.2	<1.2
Spot Roundness	%	>90	>90	>90
Input Voltage	V	DC-36V	DC-36V	DC-36V
Power consumption		water-cooling	water-cooling	water-cooling

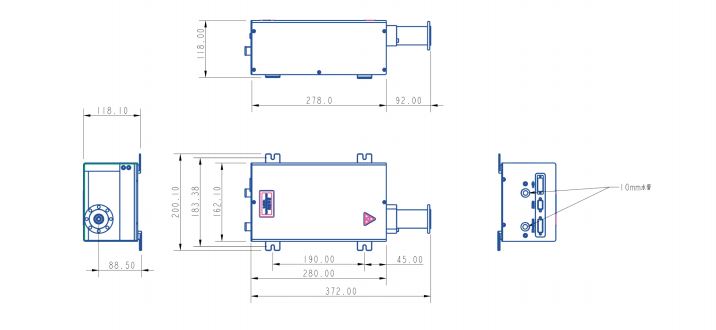

Dimensions（L*W*H）	mm	278*162*118	278*162*118	278*162*118
Weight	kg	8.1	8.1	8.1
