The ultraviolet nanosecond laser has the characteristics of short pulse width and high peak power, and combines pump laser technology with acousto-optic modulation technology, efficient intracavity frequency conversion technology, and high-precision temperature control technology. The entire series of products is designed according to the requirements of industrial grade lasers, and has undergone temperature cycling and shock vibration testing to ensure the power stability and long-term reliability of the products.
The typical output wavelength is 355nm, with a repetition rate of 40-150KHz and a pulse width of less than 18ns. It is suitable for various fields such as non-metallic material marking, packaging material marking, and FPC board cutting.
Product Features
Suitable for a wide temperature range of 0-40 ° C
Parameters of laser indicators for flat water cooling
V4.0 version design, ultimate miniaturization
Excellent applicability to industrial environments
Application area
Marking of non-metallic materials
Cutting of brittle and hard materials
Packaging material film marking

Traditional inkjet marking as a replacement

Specification

Parameters/Type	Unit	NUV-NA2-5
Working Mode		Pulse
Center Wavelength	nm	355
Pulse Repetition Rate	kHz	40-150
Pulse Width		<18ns@40kHz
Average Output Power		>5W@40kHz
Polarization Mode		horizontally polarized
Power stability，RMS@8h		< 3%@RMS
Beam Quality M2		<1.2
Spot Roundness	%	>90
Input Voltage	V	DC-12V
Power consumption		water-cooling

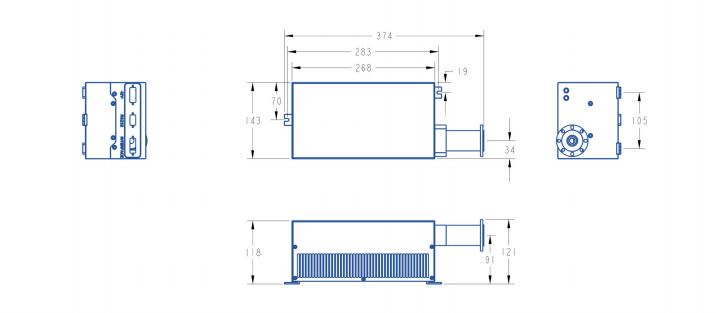

Dimensions（L*W*H）	mm	278*162*118
Weight	kg	3.5
