The ultraviolet nanosecond laser has the characteristics of short pulse width and high peak power, and combines pump laser technology with acousto-optic modulation technology, efficient intracavity frequency conversion technology, and high-precision temperature control technology. The entire series of products is designed according to the requirements of industrial grade lasers, and has undergone temperature cycling and shock vibration testing to ensure the power stability and long-term reliability of the products.
The typical output wavelength is 355nm, the repetition rate is 30-150kHz, and the pulse width is less than 15ns. It is suitable for non-metallic material marking, packaging material marking, and PCB board cutting in multiple fields.
Product Features
end pumped, long lifespan
Small and compact model
Indicator replacement for same level models
Excellent industrial stability
Application area
Marking of non-metallic materials
Table facial mask layer removal
Cutting of hard and brittle materials

Traditional inkjet marking as a replacement

Specification

Parameters/Type	Unit	NUV-N3-3	NUV-N3-5
Working Mode		Pulse	Pulse
Center Wavelength	nm	355	355
Pulse Repetition Rate	kHz	30-150	30-150
Pulse Width		<15ns@30kHz	<15ns@30kHz
Average Output Power		>3W@30kHz	>3W@30kHz
Polarization Mode		horizontally polarized	horizontally polarized
Power stability，RMS@8h		< 3%@RMS	< 3%@RMS
Beam Quality M2		<1.2	<1.2
Spot Roundness	%	>90	>90
Input Voltage	V	DC-12	DC-12
Power consumption		water-cooling	water-cooling

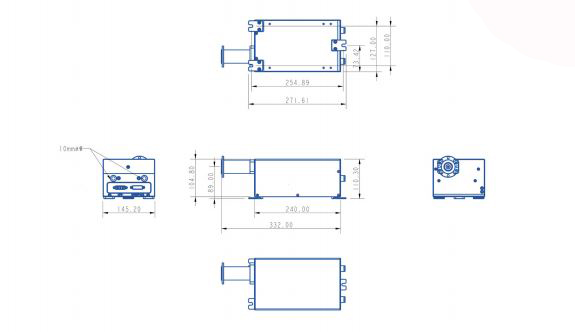

Dimensions（L*W*H）	mm	240*145*105	240*145*105
Weight	kg	5.5	5.5
