Product Details

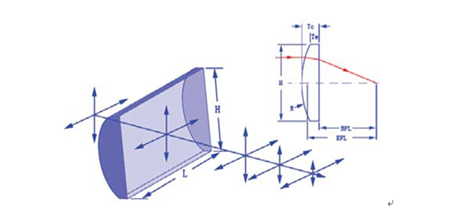

Plano convex cylindrical lens product

Cylinder Lenses are typically used to focus incoming light to a line, or to change the aspect ratio of an image. Cylindrical Lenses have a single cylindrical surface that causes incoming light to be focused in only a single dimension, stretching the image. Cylinder Lenses are available with positive or negative focal lengths, ideal for laser line generation or anamorphic beam shaping to circularize laser outputs.


We can manufacture optical lenses in any optical material required. Please contact us with your specific requirements.


Plano convex cylindrical lens Specifications

Dimension Tolerance

±0.02 mm

Thickness Tolerance

±0.02 mm

Surface Accuracy

λ/10

Surface Quality

20/10 or better

Material

BK7, UVFused silica .etc

Clear Aperture

>90%

Centering

<3 arc min

Coating

Custom

Bevel

Protective bevel as needed
