Schmidt prisms

Product Details

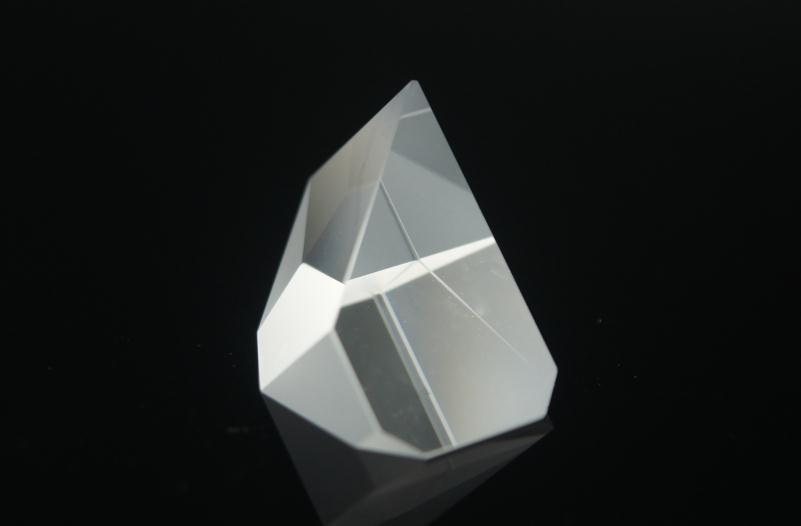

Schmidt prisms Product

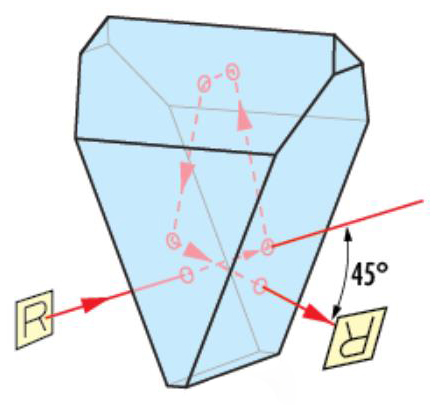

Schmidt prisms are ideal for creating a right handed image with a ray deviation of 45°. They are similar in function to Amici Roof Prisms, however the 45° deviation makes Schmidt prisms especially useful in eyepiece assemblies and imaging systems requiring a path bend. Schmidt Prisms can be combined with Half-Penta Prisms to create a Pechan prism.


We can manufacture lenses in any optical material required. Please contact us with your specific requirements.


Schmidt prisms specifications

Dimensional Tolerance ±0.02mm
Angle Tolerance ±5 Arc Seconds
Surface Flatness λ/10
Surface Quality 20/10 or better
Material BK7/quartz/sapphire/Ge/CaF2/ZnSe .etc
Bevel Protective bevel as needed
Clear Aperture >90%
