Zinc Sulfide Multispectral Windows

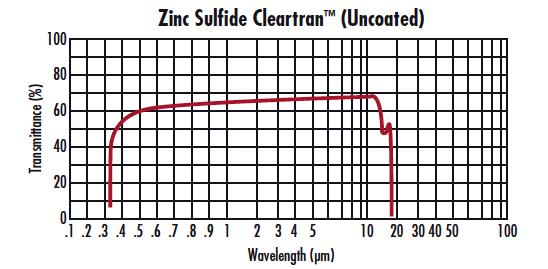

Zinc Sulfide Multispectral Windows are manufactured from a water-free, multi-spectral grade of zinc sulfide that has low absorption and scatter properties over its broad transmission range of 0.4 - 12μm.  Zinc Sulfide Multispectral is a chemically vapor deposited material which is commonly used in thermal imaging. With its excellent transmission properties in the visible and infrared, Zinc Sulfide Multispectral is the material of choice for systems that have both visible and mid-wave or long-wave infrared sensors. It is slightly harder and more chemically resistant than zinc selenide.


Name Optical Zinc Sulphide (ZnS) Windows
Diameter 3-400mm
Diameter tolerance  +/-0.02mm
Thickness Tolerance +/-0.02mm
Aperture >90%
Surface Quality 80/50~10/5 (S/D)
Parallelism +/-30''
Transmission Range 8-14 Microns
Coating AR/AR 3-5 microns both sides

We can manufacture optical windows in any optical material required. Please contact us with your specific requirements.
