CaF2 Windows

Product Details

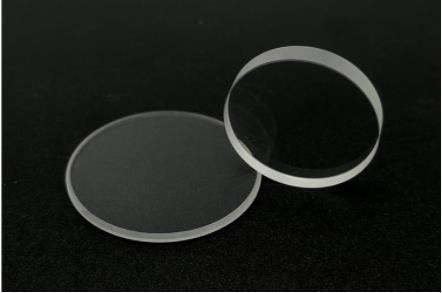

CaF2 Windows Product

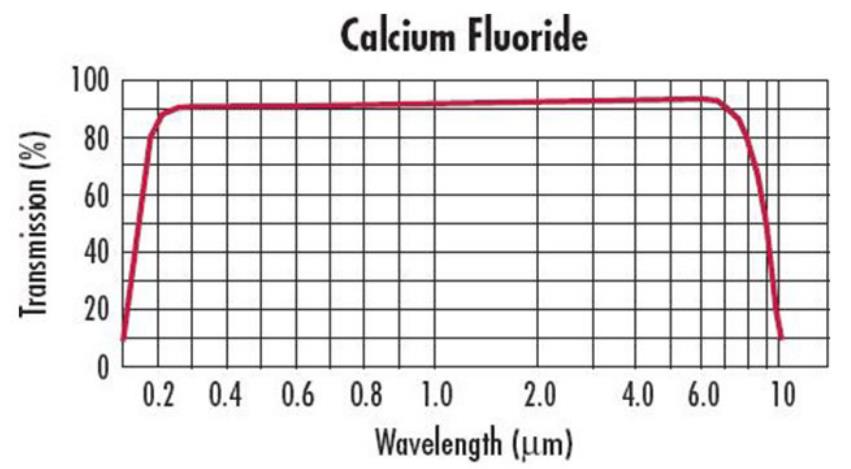

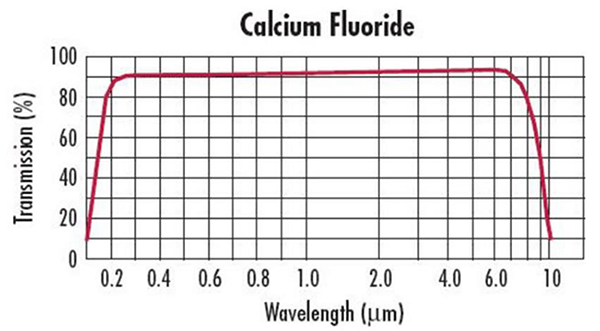

Calcium fluoride (CaF2) window material has a light transmission range of ultraviolet light 0.13 ~ far infrared 10μm (there are five levels: IR infrared, VIS visible, UV ultraviolet, VUV vacuum ultraviolet, excimer level). It is excellent ultraviolet and infrared Window material.


Calcium fluoride (CaF2) crystals have a high laser damage threshold and are commonly used to fabricate optical components for excimer lasers. With strong shock and thermal shock resistance and good machinability. Calcium fluoride window is widely used in low energy experiments and detection of charged ions in environmental radiation monitoring and diagnosis.


Caf2 windows specifications


Diameter

0.2-300mm

Thickness

0.1-100mm

Dimension tolerance

+/-0.02mm

Surface quality (scratch & dig)

20/10 or better

Clear aperture

 >90%

Surface accuracy

λ/4 λ/8 λ/10

Parallelism

<30 arc sec

Bevel

0.1~0.3mm x 45 degree

Coating

AR or Custom





Standard Models



Dia(mm)
Thk (mm)
Surface Quality
Coating
51 1 40-20
AR/AR@8-14um   AR/DLC@8-14um
10 1 40-20
AR/AR@8-14um   AR/DLC@8-14um
12.5 2 40-20
AR/AR@8-14um   AR/DLC@8-14um
12.7 2 40-20
AR/AR@8-14um   AR/DLC@8-14um
25 2 40-20
AR/AR@8-14um   AR/DLC@8-14um
40 2 40-20
AR/AR@8-14um   AR/DLC@8-14um
50 3 40-20
AR/AR@8-14um   AR/DLC@8-14um


We can manufacture optical windows in any optical material required. Please contact us with your specific requirements
