Condenser Lens

Product Details

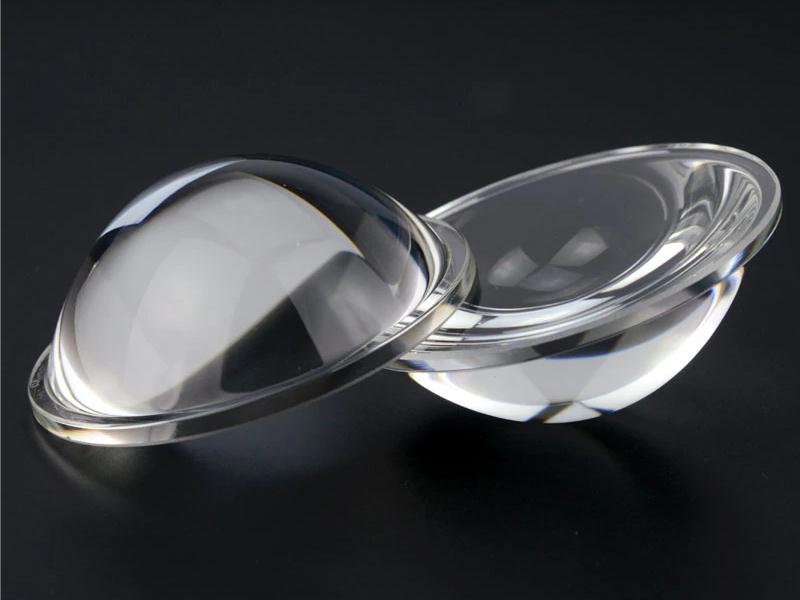

Condenser Lenses Product

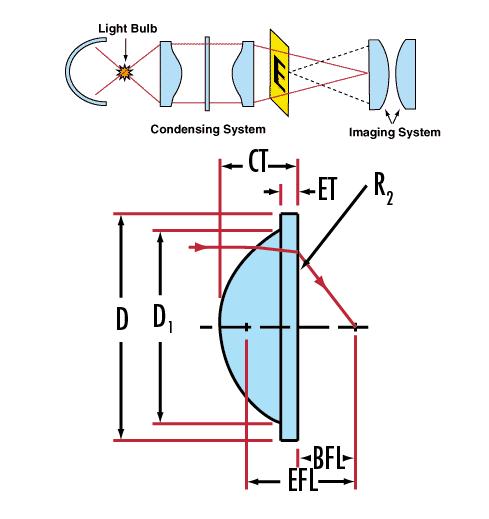

Condenser Lenses are molded lenses designed for illumination applications. Featuring large apertures and short focal lengths, Condenser Lenses are commonly used in emitter-detector applications, projection applications, or condensing illumination applications such as Koehler Illumination. The Aspheric Condenser Lenses are molded on the aspheric surface and ground and polished on the opposite face, offering superior performance.


We can manufacture lenses in any optical material required. Please contact us with your specific requirements.
Custom lenses are available on request.

Product Name Aspherical lens
Diameter &Tolerance ±0.02mm
Clear aperture >90%
Thickenss &Tolerance ±0.02mm
Surface Flatness λ/10
Surface Quality 20/10
Material N-BK7,Quartz, Sapphire, CaF2, Ge,Si,ZnSe .etc
Beveling 0.25±0.1mm
Coating AR coatimg/Reflective coating/Dichroic film
