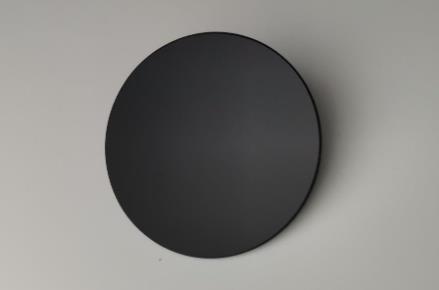

Silicon Windows

Product Details

Silicon (Si) Windows manufactured from optical grade silicon are popular for the 1.2 - 7μm spectral region due to their low cost and low density. Due to its low density (half that of germanium or zinc selenide), silicon is ideal for weight sensitive applications, especially those in the 3 - 5μm region. Density is 2.329 g/cm3 and Knoop Hardness is 1150, making it harder and less brittle than germanium.


General specifications

Diameter

0.2-300mm

Thickness

0.1-30mm or Custom

Dimension tolerance

+/-0.02mm

Surface quality (scratch & dig)

20/10 or better

Clear aperture

>85%, >90%

Surface accuracy

λ/10

Parallelism

<30 arc sec

Bevel

0.1~0.3mm x 45 degree

Coating

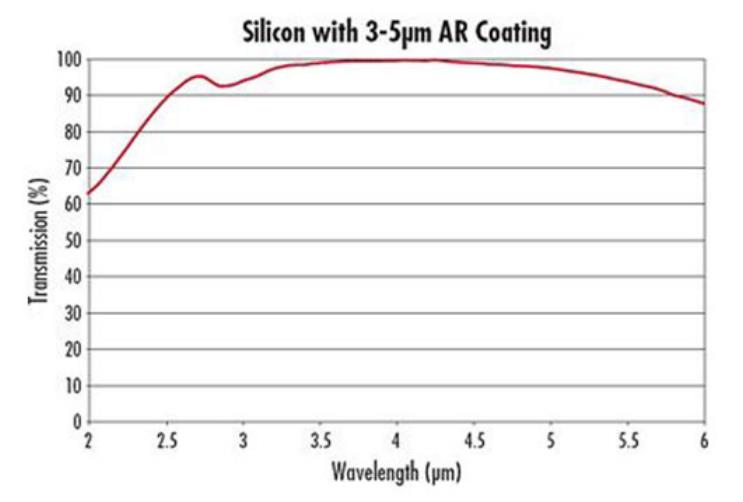

AR/AR@3-5μm DLC/AR@8-14μm BBAR/BBAR@3-12μm

We can manufacture optical windows in any optical material required. Please contact us with your specific requirements.
