Powell Lens

Product Details

Powell Lenses Product

Optimized for a 0.8mm diameter laser beam input, our Powell Lenses, also known as Laser Line Generator Lenses, convert laser beams into uniform, straight lines. Unlike cylindrical lenses, which generate Gaussian beam profiles with hot-spot center points and fading edges, Powell Lenses provide an even distribution of energy along the length of the entire line.

Type: Beam Shaping Lens
Substrate: N-BK7/N-SF6
Coating: VIS-NIR (450-900nm)
Coating Specification: BBAR @ 450 - 900nm
Fan Angle (°): 30/45/60/75

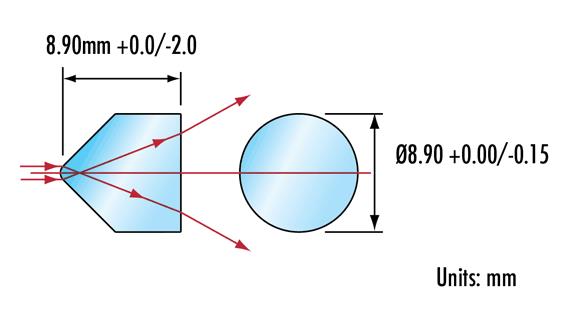

Height (mm): 8.90 +0.00/-2.00
Wavelength Range (nm): 450 - 900

We can manufacture optical windows in any optical material required. Please contact us with your specific requirements.
