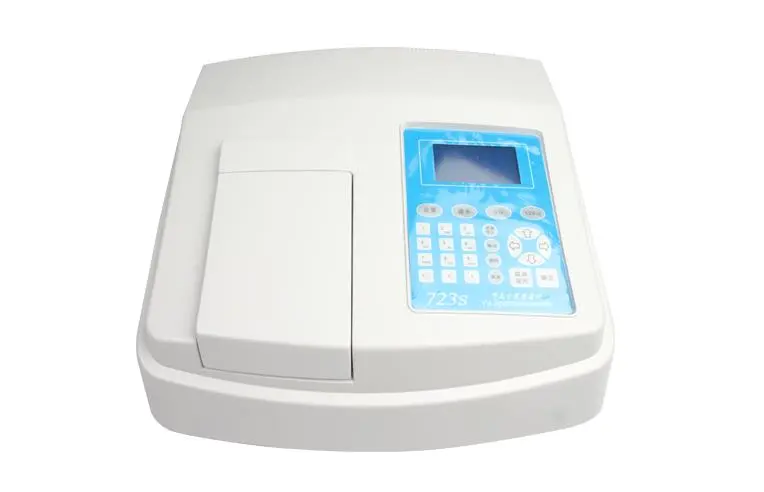

Vis Spectrophotometer Product
723S Vis Spectrophotometer is one single beam, automatic scanning Vis Spectrophotometer products developed and made by HuiQi Optics, The instrument has the features like delicate structure, high price-quality ratio, various convenient functions and etc. They could make the qualitative and quantitative test in material research, pharmaceutical analysis, Biochemical and clinical examination, analysis of water quality control, food inspection and the other fields.
723SVis Spectrophotometer Main Features
High Wavelength Accuracy: ensure the accuracy and long-term stability when the instrument is processing auto wavelength detection and calibration.
Wide Wavelength Range: meet the needs of most spectrophotometric test
High Scanning Speed: help user to capture the instantaneous spectrum change of sample and improve the work efficiency.
High Photometric Accuracy: ensure the measurement of optical light path to meet the design requirements, improve process efficiency of the Assembly to achieve high precision photometry testing index.
Offline U disk storage: make it easy for user to manage data in the format like Excel and etc.
USB ports: User needn’t set any parameter to enable online communication while the RS232 serial port have to set it.
Various offline quantitative measurement function: Electronic System use 32 bits ARM core processor system, equipped with 128*64 big screen LCD, offline quantitative measurement could do multi wavelength test, Standard curve fitting and measurement, standard coefficient equation input, save and load standard equation, data storage and printing, quantitative measurement of concentration.
Powerful Software Function: Software could achieve spectrum scanning, time scanning, dynamic scanning, quantitative measurement, multi wavelength analysis and formula calculation, spectrum processing, find peak and valley, print data, DNA/RNA test, instrument calibration, performance verification and etc. to meet different needs in various analysis fields.
| Wavelength Range | 320nm~1100nm |
| Wavelength Accuracy | ±1nm |
| Wavelength Repeatability | ≤0.5nm |
| Bandwidth | 2nm |
| Photometry Accuracy | ±0.5%T |
| Photometry Repeatability | ≤0.2%T |
| Stray Light | ≤0.1%T(220nm, NaI) |
| Baseline Flatness | ±0.002A |
| Stability | ≤0.0008A |
| Noise | ≤0.5%T(100%T), ≤0.2%T(0%T) |
| Photometry Range | 0.0~200%(T),-0.3~4(A) |
| Display System | 128*64 LCD Display |
| Functional Port | USB-A(U Disk), USB-B(PC), Serial Port(Printer) |
| Instrument Dimension | 370*357*220mm |
| Carton Dimension | 450*420*310mm |
| Weight | N.W.: 8KG; G.W.: 10KG |
Other types of spectrophotometer

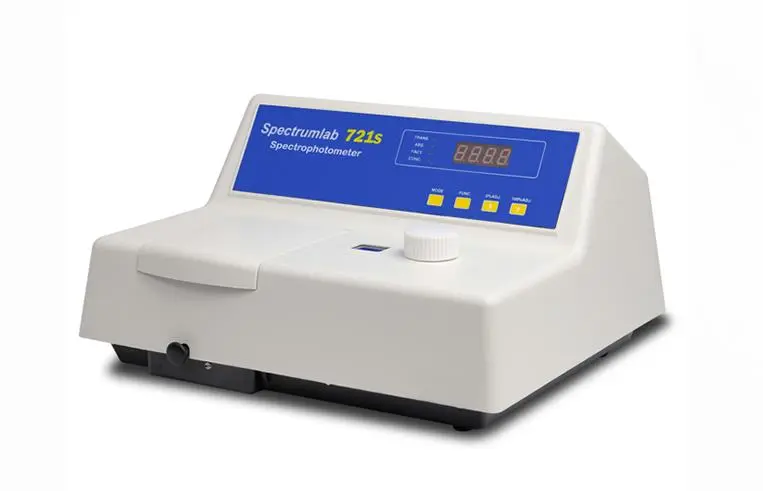

VIS SPECTROPHOTOMETER

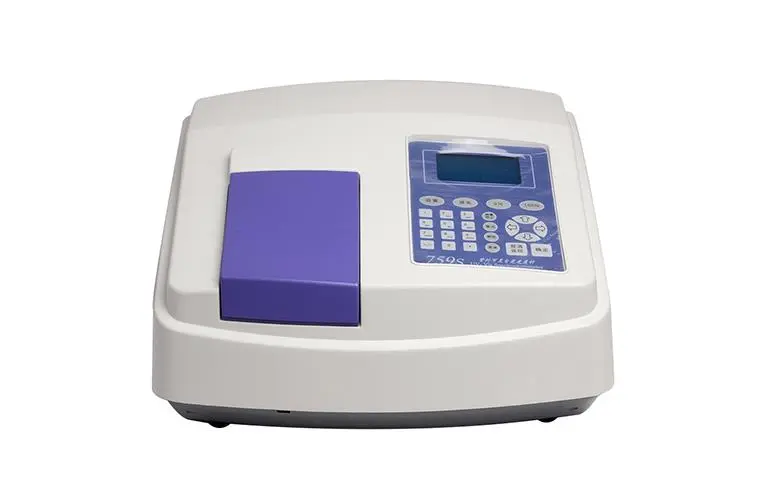

UV-VIS SPECTROPHOTOMETER

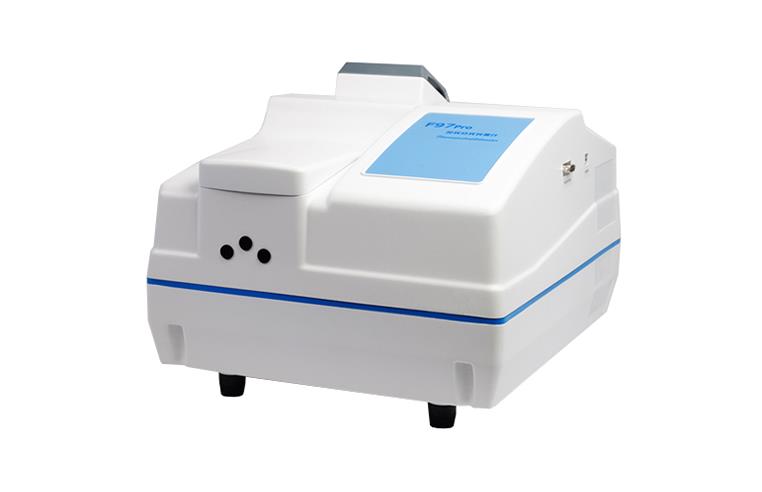

FLUORESCENCE SPECTROPHOTOMETER
