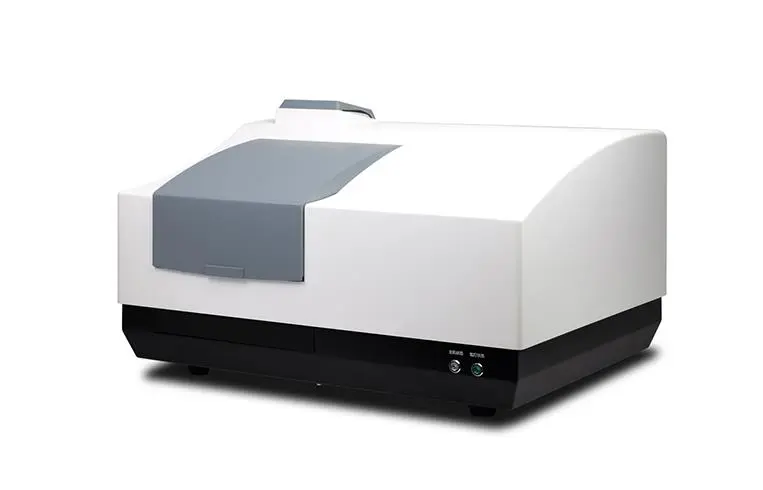

F98 fluorescence spectrophotometer product
F98 fluorescence spectrophotometer is a new generation of high-performance molecular luminescence analysis equipment. This product is designed for high performance, with high signal to noise ratio, ultra-high scanning speed, ultra-high resolution, ultra-high wavelength accuracy and a variety of accessories.
F98 Fluorescence Spectrophotometer Main Features
●Horizontal slit optical design, with excellent luminous detection efficiency and high signal to noise ratio. Water Raman peak SNR better than 350: 1 (P-P) or 1000: 1 (RMS). The minimum sample volume is 0.5mL when using a standard 10mm square sample cell.
●Wavelength scanning speed up to 60000 nm / min.
●Bandwidth 1/2/5/10/20nm adjustable.
●Fluorescence Quantum Yield accessory available.
●The software offers fluorescence 3D scanning, equal-wavelength difference synchronous scanning, equal wave number difference (constant energy difference) synchronous scanning functions. (synchronous scanning function require pro version software)
●Multi accessories available.
●Using Hamamatsu’s high quality Xenon light source and photoelectric multiplier tube detectors and instruments to provide sufficient light intensity signal and the detection sensitivity.
●Built-in frequency filter. Built-in optical gate, designed for unstable sample.
Specification of F98 Series Fluorescence Spectrophotometer |
|
| Excitation Source | 150W xenon lamp（Hamamatsu） |
| Excitation Wavelength | 200nm~900nm |
| Emission Wavelength | 200nm~900nm |
| Excitation Slit | 1nm/2nm/5nm/10nm/20nm |
| Emission Slit | 1nm/2nm/5nm/10nm/20nm |
| Wavelength Accuracy | ±0.4nm |
| Wavelength Repeatability | ≤0.2nm |
| Signal-to-Noise Ratio | S/N≥350(P-P) S/N≥1000(RMS) |
| Limit | ≤5×10-11 g/ml（Quinine Sulfate Solution） |
| Linearity | γ≥0.995 |
| Peak Repeatability | ≤1.5% |
| Wavelength Scan Speed | Multi-speed Level, Maximum at 60000nm/min |
| Minimum sample size | 0.5mL (Using a standard 10mm square sample cell) |
| Octave filter | Build in Octave filter |
| Photometric Quantity Range | -9999 ~ 9999 |
| Response Time | 0.02/0.1/0.5/1/2/4/8 s，Auto adjust |
| Data Transportation | USB2.0 |
| Power | 200W |
| Power Source | AC 220V/50Hz； 110V/60Hz |
| Instrument Dimension | 610×460×365（mm） |
| Weight | Net Weight：21kg Gross Weight：26kg |
Optional Accessories
 |
 |
 |
 |
|

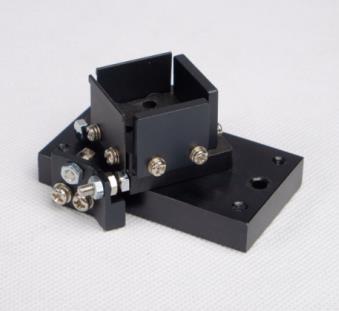

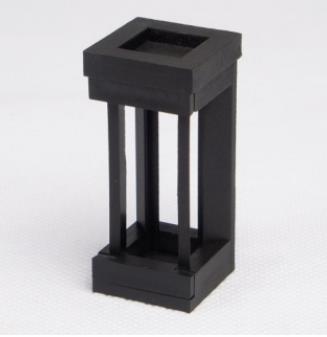

Multi-function fluorescent sample rackholder: Base of other sample racks |

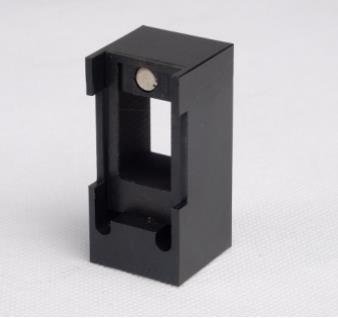

Membrane sample rack |

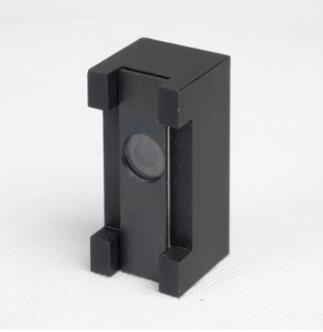

Powder sample rack |
Sample cell jacket |
 |
 |
 |
|

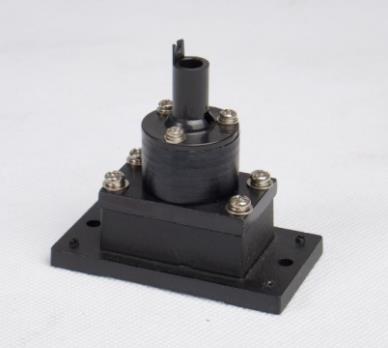

200uL microcentrifuge tube accessory |
Upconversion fluorescent accessory |

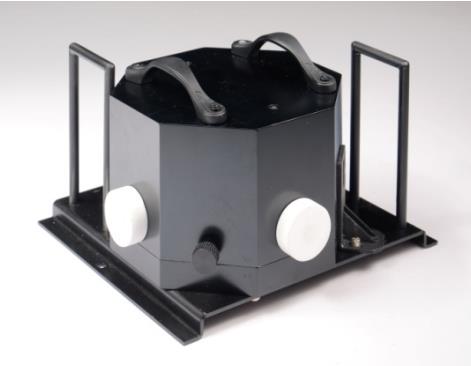

Fluorescence Quantum Yield accessory |

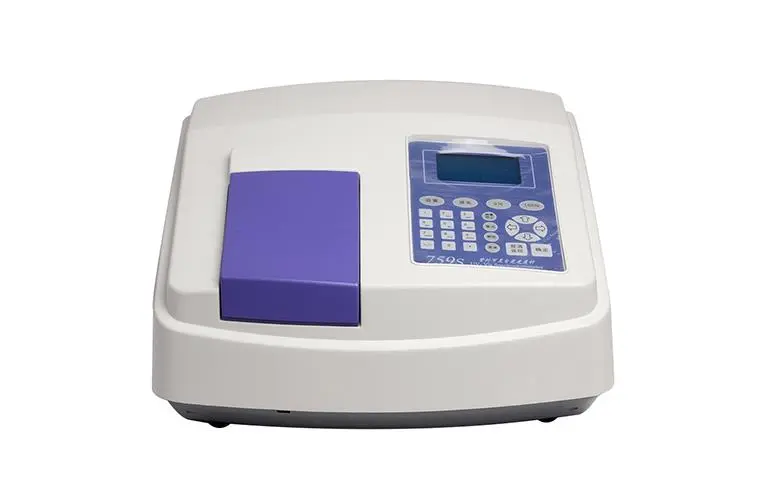

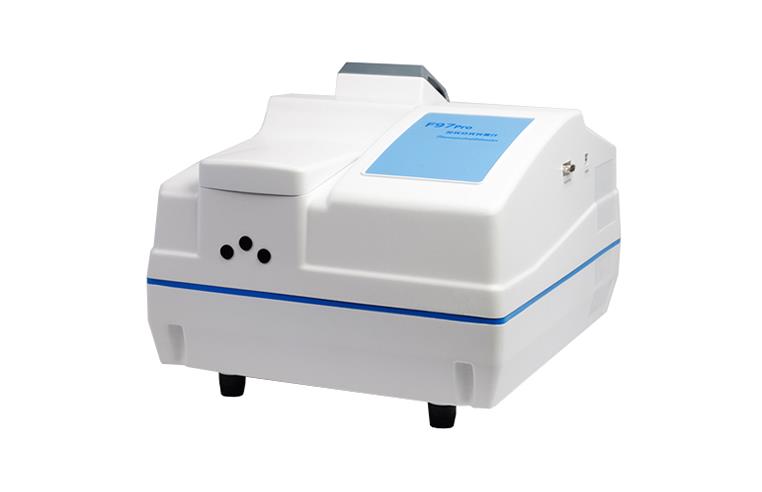

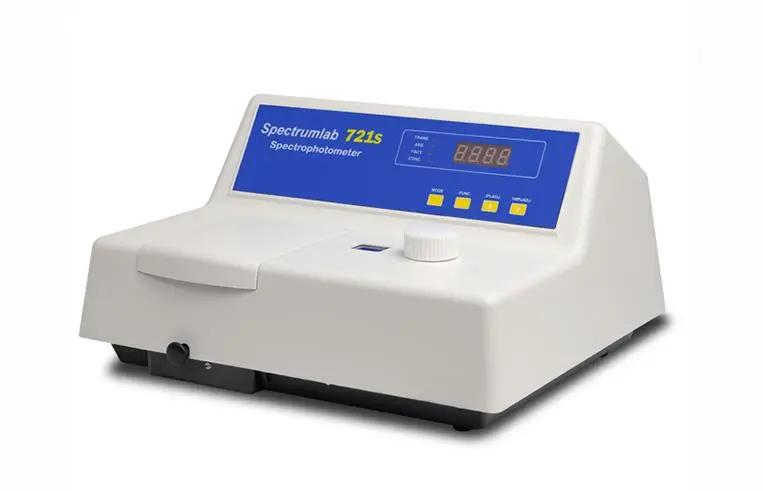

| Other types of spectrophotometer | ||
 |
 |
 |
