Rhomboid prism

Product Details

Rhombic prism product

Rhombic Prism

Rhombic Prism description

Rhombic Prism are used to display a beam laterally without changing it’sdirection.

They are coated to transmit part of the beam and produce two parallel and displaced emerging beams.
Can be coated to produce a polarizing beam separator. Coating design are per customer’s design according it is detailed application

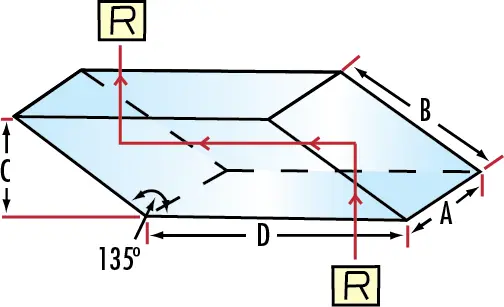

Rhombic Prism can displace a laser beam without change the image orientation, the input beam is totally internal reflected by two 45degree faces and goes out from the output face. Then, a lateral displacement is produced.

Higher transmission rate can be achieved by anti-reflective coating on the input and output faces. Rhomboid prism is always used in stereoscopic system and periscope system.

Currently we can make angle tolerance <5 arc seconds, total beam deviation <30 arc seconds. Large size is also available.

Rhomboid prism specifications

Material BK7 grade A optical glass
Dimension Tolerance +0.0,-0.2mm
Clear Aperture >85%
Surface Quality 20-10 scratch and dig
Parallelism < 5 arc seconds
Flatness λ/8 (@) 632.8nm
Angle Tolerance <1 arc minute
Protective Bevel 0.25mm x 45°

We can manufacture optical windows in any optical material required. Please contact us with your specific requirements.
