KTP Crystal

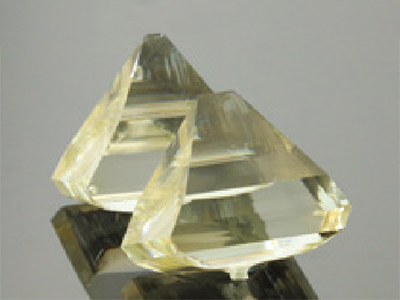

EBETTER’S KTP crystals feature high purity, low absorption at fundamental and second harmonic generation wavelengths. We supply superior grade and customer-designed KTP crystals for various applications.
Advantages
• Large nonlinear optical (NLO) coefficients
• Wide angular bandwidth and small walk-off angle
• Broad temperature and spectral bandwidths
• High electro-optic (E-O) coefficient and low dielectric constant
• Large figure of merit for an optical waveguide modulator
• Non-hygroscopic, good chemical and mechanical properties
Chemical and Structural Properties
| Crystal Structure |
Orthorhombic, space group Pna21,point group mm2
|
|
Lattice Parameter
|
a=6.404Å, b=10.616Å, c=12.814Å, Z=8
|
|
Melting Point
|
About 1172℃
|
|
Mohs Hardness
|
5 |
|
Density
|
3.01 g/cm3
|
|
Thermal Conductivity Coefficient
|
13W/m/K
|
|
Thermal Expansion Coefficient
|
ax=11x10-6/℃ , ay=9x10-6/℃ , az=0.6x10-6/℃
|
Optical and Nonlinear Optical Properties
|
Transparency Range
|
350~4500nm
|
|
SHG Phase Matchable Range
|
497 ~ 1800nm (Type II)
|
|
Thermal-optic Coefficients (/℃ )
|
dnx/dT=1.1X10-5 dny/dT=1.3X10-5
dnz/dT=1.6X10-5
|
|
Absorption Coefficients
|
<0.1%/cm at 1064nm <1%/cm at 532nm
|
|
For Type II SHG of a Nd:YAG laser at 1064nm
|
Temperature Acceptance: 24℃ •cm
Spectral Acceptance: 0.56nm•cm
Angular Acceptance: 14.2mrad•cm (φ);55.3mrad•cm (θ)
Walk-off Angle: 0.55°
|
|
NLO Coefficients
|
deff(II) ≈ (d24 - d15)sin2φsin2θ - (d15sin2 φ+ d24cos2φ)sinθ
|
|
Non-vanished NLO Susceptibilities
|
d31=6.5 pm/V d24=7.6 pm/V d32= 5 pm/V d15=6.1 pm/V
d33=13.7 pm/V
|
|
Electro-optic Coefficients:
r13
r23
r33
r51
r42
|
Low frequecy(pm/V) High frequency(pm/V)
9.5 8.8
15.7 13.8
36.3 35.0
7.3 6.9
9.3 8.8
|
|
Dielectric Constant
|
εeff=13
|
|
Sellmeier Equations (λ in μm)
|
nx2=3.0065+0.03901/(λ2-0.04251)-0.01327λ2
ny2=3.0333+0.04154/(λ2-0.04547)-0.01408λ2
nz2=3.3134+0.05694/(λ2-0.05658)-0.01682λ2
|
