AgGaSe2 Crystals
AgGaSe2 (silver gallium selenide) crystal, referred to as AGSe crystal, is an excellent infrared nonlinear optical material with a wide transparency range (0.73-18μm). The absorption coefficient is small, the nonlinear optical coefficient is large (d36 =33 pm/V), the birefringence is suitable, and it can be used to make frequency-doubling, frequency-mixing and wideband tunable infrared parametric oscillator.
Main applications
• High frequency doubling efficiency for middle and far infrared laser, often used for CO, CO2 laser frequency doubling;
• Mixing in the infrared region to achieve laser output in the wavelength range of 4.0-18.3μm;
• Nonlinear frequency conversion such as DFG, OPO and OPA in solid-state lasers.
Standard size
Cross section 8*8mm, 5*5mm, thickness 0.1-30mm.
Other sizes can be customized.
|
Basic parameters |
|
|
Crystal system |
Tetragonal system |
|
Lattice constant |
a=5.992 Å , c=10.886 Å
|
|
Density |
5.7g/cm3
|
|
Mohs hardness |
3-3.5
|
|
Fusing point |
851℃
|
|

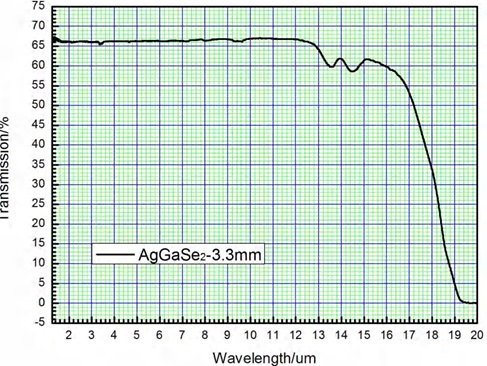

Transmittance range |
4.0-18.3μm
|
|
Nonlinear coefficient |
d36=33 pm/V @10.6μm
d36=32±4 pm/V @9.5μm
|
|
Absorption coefficient |
<0.05 cm-1@ 1.064 µm
<0.02 cm-1@ 10.6 µm
|
|
Relative dielectric constant @25MHz |
ε11s=10.5 , ε11t=12.0
|
|
Negative uniaxial crystal |
no＞ne
|
|
Thermal conductivity |
1.0 W/m/°C
|
|
Coefficient of thermal expansion |
//C: -8.1 x 10-6 / °C
⊥C: +19.8 x 10-6 / °C |
