AgGaGeS4 Crystals

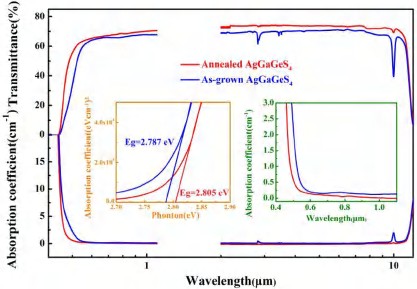

AgGaGeS4 (thiogermanium gallium silver) crystal, referred to as AGGS crystal, is a new type of infrared nonlinear crystal, nonlinear coefficient d31=15pm/V. Compared with conventional infrared nonlinear crystals, With wide light transmission range (0.5-11.5μm), small absorption coefficient (0.05cm-1@1064nm), With high laser damage threshold (>1.2J/cm2@1064nm), it is an ideal infrared nonlinear crystal material that can be pumped by 0.8μm titanium gem laser and 1.06μm Nd:YAG laser to output high power middle and far infrared tuned laser.
Machining parameters |
|
Dimensional tolerance |
(W+/-0.1 mm)x(H +/-0.1 mm) x(L +0.2 mm/-0.1mm) |
Angle tolerance |
Δθ < +/-0.25o, Δφ < +/-0.25o |
Wavefront distortion |
<λ/6 @ 633 nm |
Clear Aperture |
>90% central area |
Face type |
λ/6 @ 633 nm for T>=1.0mm |
Surface Quality |
20/10 per MIL-0-13830A |
Damage Resistance Threshold (surface) |
1.08J/cm2 |
Damage resistance threshold (Body) |
1.39J/cm2 |
Parallelism |
30" |
Perpendicularity |
10' |
Bevel |
<0.2mmx45° |
![](/Uploads/image/20240516/20240516113811.jpeg)
