Product Details

Concave gratings for monochromator


Diffraction Gratings are optical components used to separate light into its component wavelengths, usaully used in spectroscopy, or for integration into spectrophotometers or monochromators. Diffraction Gratings contain a series of closely packed grooves that have been engraved or etched into the Grating’s surface. Diffraction Gratings can be either transmissive or reflective.




General specifications


Grooves 1200Lines/mm
Blaze Wavelength 200-290nm
Ruled Area 40X45mm
Material BK7
Coating Aluminium
Type Reflective diffraction gratings
Construction Concave holographic gratings

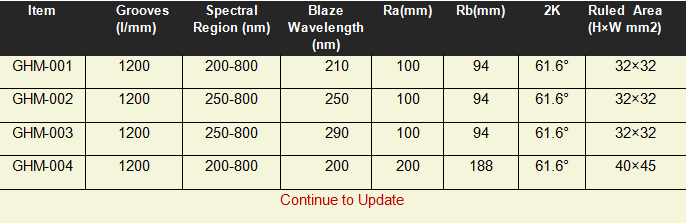

Caralogue for concave gratings for Monochromator
