Plano convex lens

Product Details

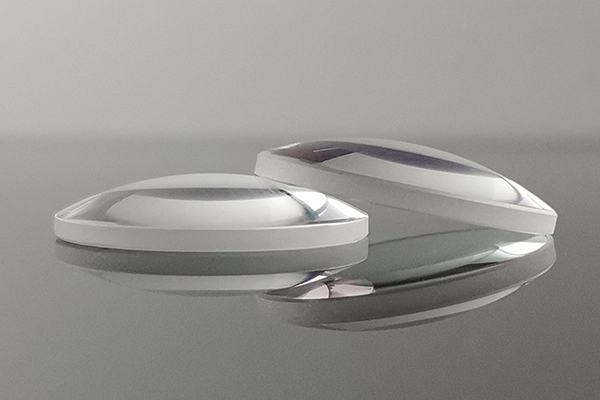

Plano Convex Lenses Product

Plano Convex Lenses are Optical Lenses with a positive focal length. Plano-Convex Lenses are ideal for light collimation or for focusing applications utilizing monochromatic illumination, in a range of industries including industrial, pharmaceutical, robotics, or defense. Plano Convex Lenses have one convex surface. For maximum efficiency, the second, plano (flat) surface should face the desired focal plane. Plano-Convex lenses are commonly used in a wide range of applications or industries.

We can manufacture lenses in any optical material required. Please contact us with your specific requirements.

Diameter Tolerance ±0.02 mm
Center Thickness Tolerance ±0.02mm
Focal Length Tolerance ±1%
Surface Quality 10/20 or better
Material BK7, UVFused silica, Ge,CaF2,  ZnSe, etc
Clear Aperture >90%
Centering <3 arc min
Coating Custom
Bevel Protective bevel as needed
