Dove prism

Product Details

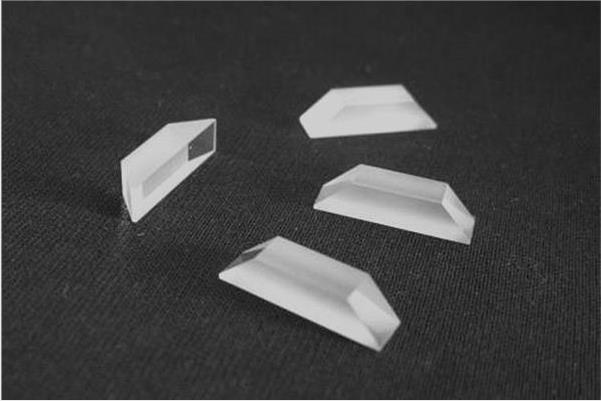

Dove prism product

Dove prism

Dove prisms Description

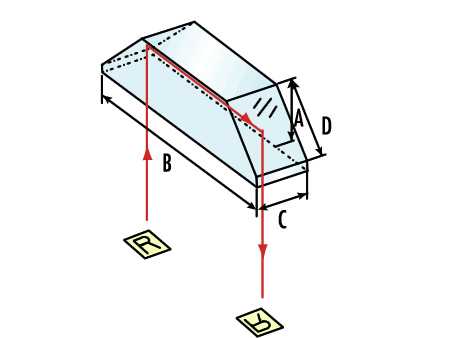

Dove prisms have an unusual and very interesting characteristic — if you look through the prism and rotate it around a longitudinal axis, the image rotates through twice the angle through which the dove prism itself rotates. For optimal peformance, use dove prisms with collimated light. The top surface of Dove Prism is ground and the longest length (specified by dimension B) features an unbeveled sharp edge.


We can manufacture prism in any optical material required. Please contact us with your specific requirements.

Dove prism specifications

Dimensional Tolerance ±0.05 Legs, ±0.15 Hypotenuse
Angle Tolerance ±1 Arc Seconds
Surface Flatness λ/10
Surface Quality 20/10 or better
Material BK7/quartz/sapphire/Ge/CaF2/ZnSe .etc
Bevel Protective bevel as needed
Coating Custom
