Sapphire Windows

Product Details

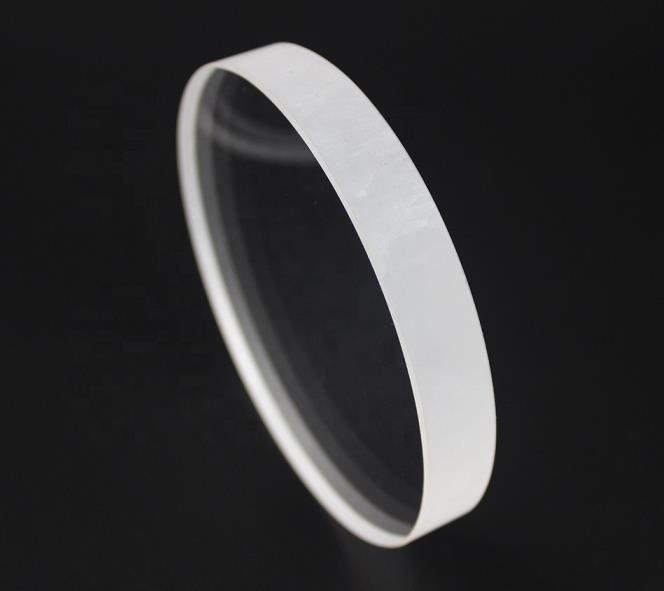

Sapphire Windows

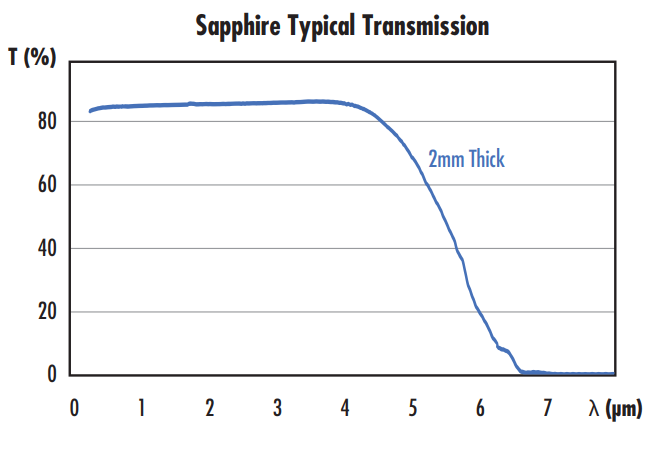

Sapphire glass windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis.

General specifications

Material

Sapphire/Optical glass

Chamfer

0.25mm at 45 degree typical

Dimensiontolerance

± 0.01mm

Surface quality

10/5,20/10, 40-20,60/40,80/50

Flatness

lambda/10-lambda/20 at 633nm

Parallelism

<1 arc second

Clear aperture

Central 95%

Edges

Ground, Maximum 0.25mm Edge Chip

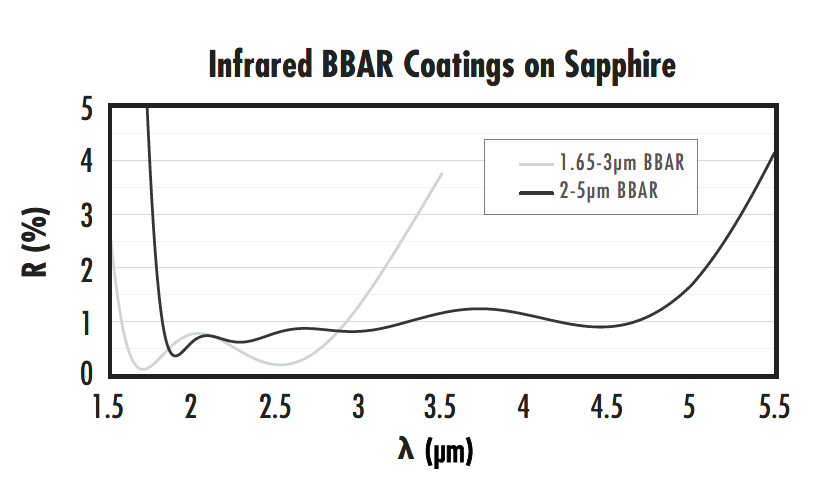

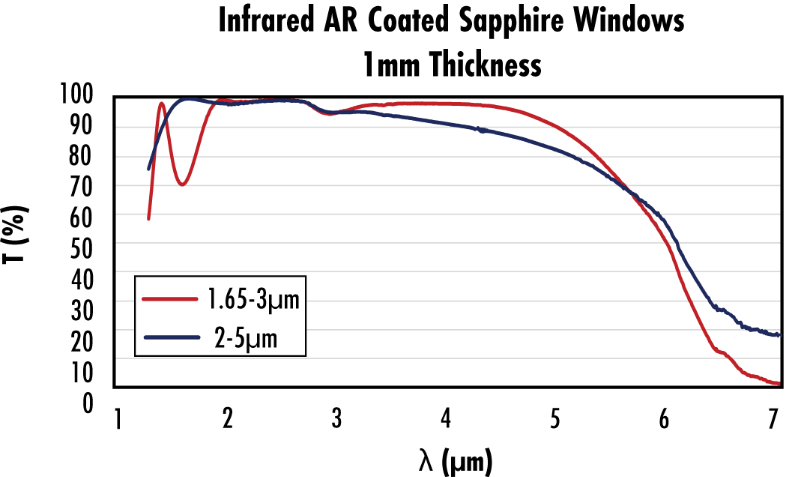

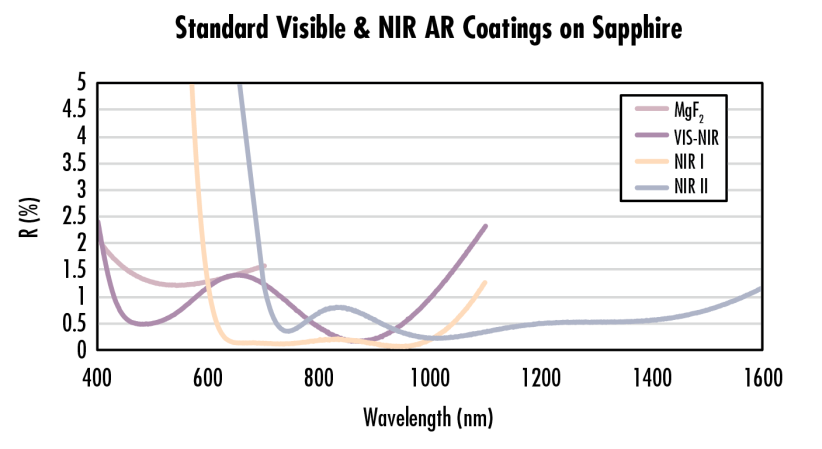

Coating

Uncoated, AR, HR, PR coating, etc

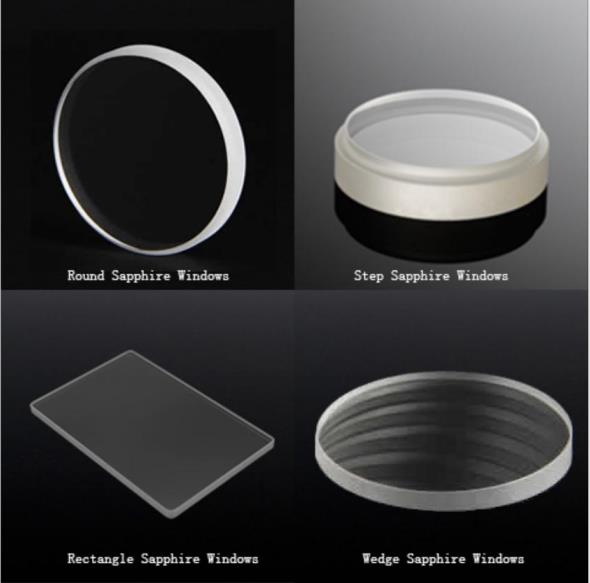

Appearance

Restangular,square,circle,wedge,oval etc



We can manufacture optical windows in any optical material required,Please contact us with your specific requirements.
