Product Details

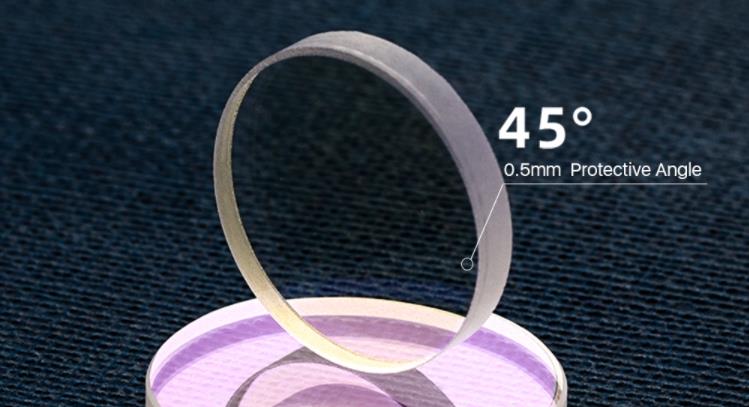

Laser protective window


1.HQ Quartz Crystal

Irradiation-resistant, Stable Performance and Long Life, Used in a Harsh Environment.

2.Low Scattering

Standard High Efficiency, Low Loss Anti-reflectance, Low Scattering.

3.Lower Power Loss

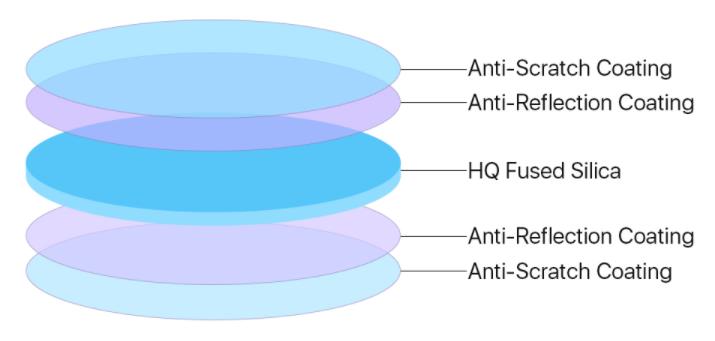

Thin Film Coating Applied to Both Sides, High Damage Threshold(>15J/cm2)

4.Various Specifications

We Have Enough Stock To Meet Needs Of Customers, And Can Make The Customized Parts.

Base Material Diameter(mm) Edge Thickness(mm) Coating
JGS1/Fused Silica 20 2/3/5 AR/AR@1070nm
JGS1/Fused Silica 22.35 4 AR/AR@1070nm
JGS1/Fused Silica 25 2/3 AR/AR@1070nm
JGS1/Fused Silica 25.4 3/4/5 AR/AR@1070nm
JGS1/Fused Silica 28 4 AR/AR@1070nm
JGS1/Fused Silica 30 1.5/2/3.5 AR/AR@1070nm
JGS1/Fused Silica 32 4 AR/AR@1070nm
JGS1/Fused Silica 34 3/5 AR/AR@1070nm
JGS1/Fused Silica 35 1.5/4.5 AR/AR@1070nm
JGS1/Fused Silica 36 5 AR/AR@1070nm
JGS1/Fused Silica 37 7 AR/AR@1070nm
JGS1/Fused Silica 38 2/6 AR/AR@1070nm
JGS1/Fused Silica 40 3 AR/AR@1070nm
JGS1/Fused Silica 42 3 AR/AR@1070nm
JGS1/Fused Silica 42 9 AR/AR@1070nm
JGS1/Fused Silica 48 3 AR/AR@1070nm
JGS1/Fused Silica 50 2 AR/AR@1070nm
JGS1/Fused Silica 55 1.5 AR/AR@1070nm
K9 22.35 4 AR/AR@1070nm
K9 25.4 4 AR/AR@1070nm
K9 28 4 AR/AR@1070nm
K9 30 2/5 AR/AR@1070nm
K9 40 2 AR/AR@1070nm
K9 50 2 AR/AR@1070nm



We can manufacture optical windows in any optical material required. Please contact us with your specific requirements
