Product Details

Off-Axis Parabolic Mirrors Product

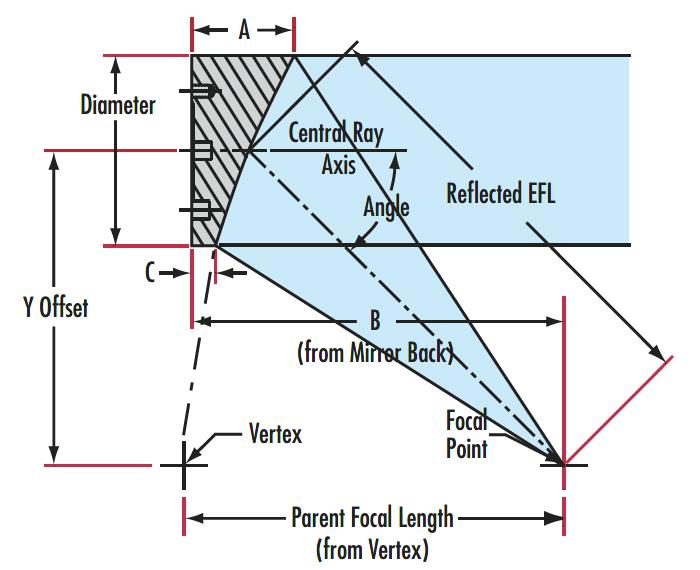

Off-Axis Parabolic Mirrors are mirrors whose reflective surfaces are segments of a parent paraboloid. They achromatically focus a collimated beam or collimate a divergent source, and their off-axis design separates the focal point from the rest of the beam path. The reflective design eliminates phase delays and absorption losses introduced by transmissive optics and makes these well suited for use with femtosecond pulsed lasers.

Metallic Coating Protected Gold, Protected Silver, Protected Aluminum
Reflectance (Average) >96% from 800 nm to 20 µm   >96%, 2 - 20 µm
Off-Axis Angle 90°
Clear Aperture >90% of Diametera
Surface Quality 20-10 or better
Surface figure λ/10 @ 633nm
Focal Length Tolerance ±1%
Substrate Aluminum
Manufacturing Process Diamond Turned

We can manufacture optical windows in any optical material required. Please contact us with your specific requirements.
