Wedge Prisms

Product Details

Wedge prisms,Wedge windows product

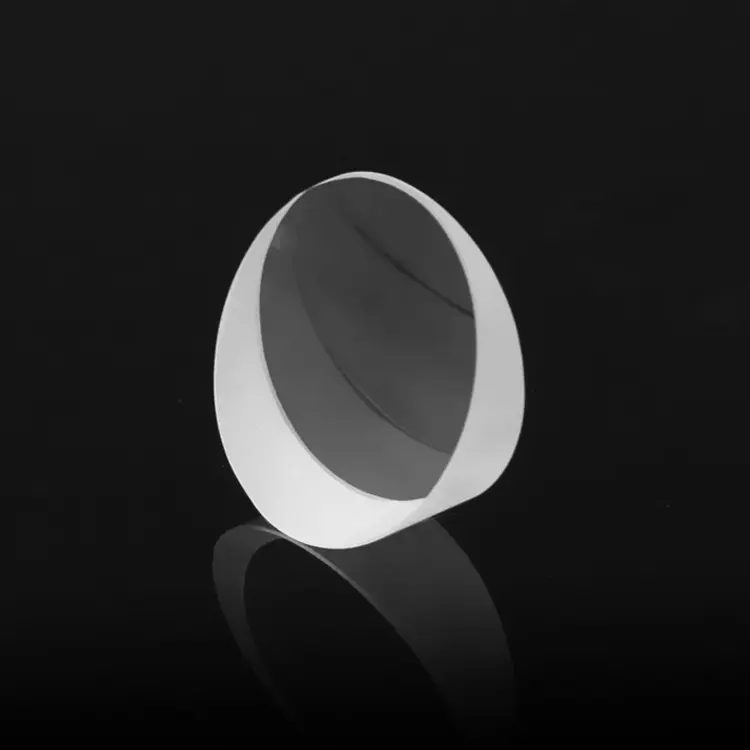

wedge prisms

Wedge prisms Description

Wedge prisms can be used individually to deviate a laser beam a set angle, or two wedge prisms can be used together for beam steering applications. A single wedge prism's ability to deviate the angle of an incident beam is measured in Diopters with 1 diopter deviating the beam 1cm at a 1m working distance.

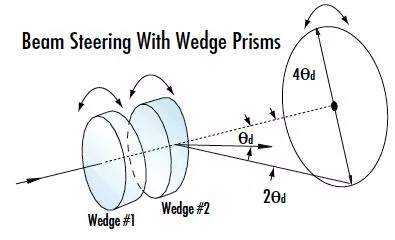

Two wedge prisms can be used as an anamorphic pair for beam shaping (to correct the elliptical shape of diode outputs). Or, a pair of wedge prisms can steer a beam anywhere within a circle described by the full angle 4θ, where θ is the deviation from a single prism. This beam steering is accomplished by rotating the two wedge prisms independently of each other, and is typically used to scan a beam to different locations in imaging applications.

Note: Beam deviation is shown in degrees and diopters. One diopter is 1cm of deviation at a distance of 1m from the prism.

Wedge prism Specifications

Dimensional Tolerance ±0.01mm
Angle Tolerance ±5 Arcsec
Surface Flatness 1/10Lambda
Surface Quality 60/40, 40/20 20/10or better
Material BK7/K9/UV fused silica/optical glass
Bevel 0.35±0.1mm
Thickness & Tolerance 3-100±0.05mm
Coating AR coatimg
Reflective coating
Dichroic film

We can manufacture optical prisms in any optical material required. Please contact us with your specific requirements.
