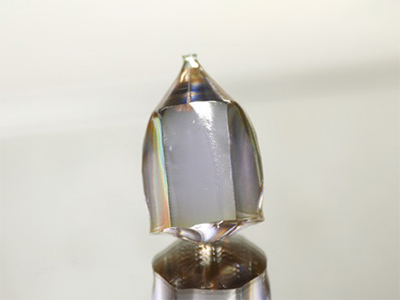

Nd: GdVO4 Crystals
Nd: GdVO4 crystals are excellent laser crystals. They are ideal laser host materials for diode pumped solidstate (DPSS) micro/mini lasers because of their good physical, optical and mechanical properties. They have higher slope efficiency than Nd: YAG crystals and provide better thermal conductivity and higher power output than Nd: YVO4 crystals, so they are a good choice for high power output DPSS lasers. Using advanced growth technology,Casix provides high grade Nd: GdVO atm% to 4.0 atm%. In addition, crystal components of various sizes and coatings are available. 4 crystals with Nd doping from 0.1 atm% to 4.0 atm%. In addition, crystal components of various sizes and coatings are available.
• Strongly polarized laser output
Specifications of Nd:GdVO4
|
Crystal Structure
|
Tetragonal
|
|
Space Group
|
I41/amd
|
|
Lattice Parameter
|
a=0.721nm，b=0.635nm
|
|
Lasing Transition
|
4F3/2 ----> 4I11/2
|
|
Lasing Wavelength
|
1062.9nm
|
|
Emission Cross Section（at 1064nm）
|
7.6×10-19 cm2
|
|
Absorption Cross Section（at 808nm）
|
4.9×10-19 cm2
|
|
Absorption Coefficient（at 808nm）
|
74 cm-1
|
|
Index of Refractivity（at 1064nm）
|
n0=1.972，ne=2.192 |
|
Thermal Conductivity（<110>）
|
11.7 W/(m×K)
|
|
Density
|
5.47 g/cm3
|
|
Nd Dopant level (atomic)
|
0.1%，0.2%，0.3%，0.5%，0.7%，1.0%，...
|
Capability
|
Attribute
|
Commercial
|
High Precision
|
|
Nd: Doping Level
|
0.5atm%, 3.0atm%
|
0.5atm%, 3.0atm%
|
|
Wavefront Distortion
|
λ/4
|
λ/8
|
|
Scattering Sites**
|
Invisible, probed with a He-Ne laser
|
Invisible, probed with a He-Ne laser
|
|
Orientation
|
±0.5°
|
±0.2°
|
|
End-Faces Configuration
|
Flat
|
Flat
|
|
Dimension Tolerance
|
±0.1mm
|
±0.01mm
|
|
Surface Quality
|
20-10 scratch and dig
|
10-5 scratch and dig
|
|
Flatness
|
λ/8
|
λ/10
|
|
Parallelism
|
20"
|
10"
|
|
Perpendicularity
|
15'
|
5'
|
