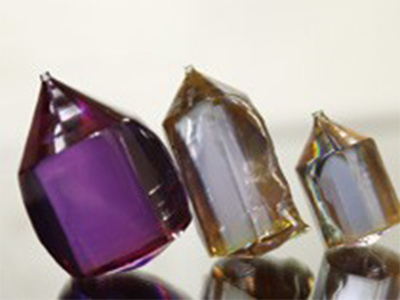

Nd:YVO4 - Neodymium Doped Yttrium Orthovanadate
Neodymium doped yttrium vanadate (Nd: YVO4) crystal is a laser crystal with excellent performance, suitable for manufacturing laser diode pumped, especially low to medium power lasers. Compared with Nd: YAG, Nd: YVO4 has higher absorption coefficient and larger stimulated emission cross section for pump light. The combination of Nd: YVO4 crystal pumped by laser diode with high nonlinear coefficient crystals such as LBO, BBO, KTP can achieve good frequency doubling conversion efficiency, and can be made into all solid-state lasers that output near-infrared, green, blue to ultraviolet, and other types.
|
Atomic Density
|
1.26x1020 atoms/cm3 (Nd1.0%)
|
|
Crystal Structure Cell Parameter
|
Zircon Tetragonal, space group D4h-I4/amd
a=b=7.1193Å,c=6.2892Å
|
|
Density
|
4.22g/cm3
|
|
Mohs Hardness
|
4-5 (Glass-like)
|
|
Thermal Expansion Coefficient（300K）
|
αa=4.43x10-6/K
αc=11.37x10-6/K |
|
Thermal Conductivity Coefficient（300K）
|
∥ C : 0.0523W/cm/K ⊥ C : 0.0510W/cm/K |
|
Lasing wavelength
|
1064nm，1342nm
|
|
Thermal optical coefficient（300K）
|
dno/dT=8.5×10-6/K
dn/dT=2.9×10-6/K
|
|
Stimulated emission cross-section
|
25×10-19cm2 @ 1064nm
|
|
Fluorescent lifetime
|
90μs(1%)
|
|
Absorption coefficient
|
31.4cm-1 @810nm
|
|
Intrinsic loss
|
0.02cm-1 @1064nm
|
|
Gain bandwidth
|
0.96nm@1064nm
|
|
Polarized laser emission
|
polarization; parallel to optical axis (c-axis)
|
|
Diode pumped optical to optical efficiency
|
>60%
|
|
Sellmeier equations（λ in μm）
|
no2=3.77834+0.069736/(λ2-0.04724)-0.010813λ2
ne2=4.59905+0.110534/(λ2-0.04813)-0.012676λ2
|
|
Attribute
|
Commercial
|
High Precision
|
|
Optical Axis Orientation
|
±0.5°
|
±0.1°
|
|
Parallelism
|
20"
|
10"
|
|
Perpendicularity
|
15'
|
5'
|
|
Flatness
|
λ/4
|
λ/10
|
|
Surface Quality
|
40-20 scratch and dig
|
10-5 scratch and dig
|
|
Dimension Tolerance
|
±0.1mm
|
±0.005mm
|
|
Ar Coating
|
R<0.2%@1550±40nm
|
Specified
|
